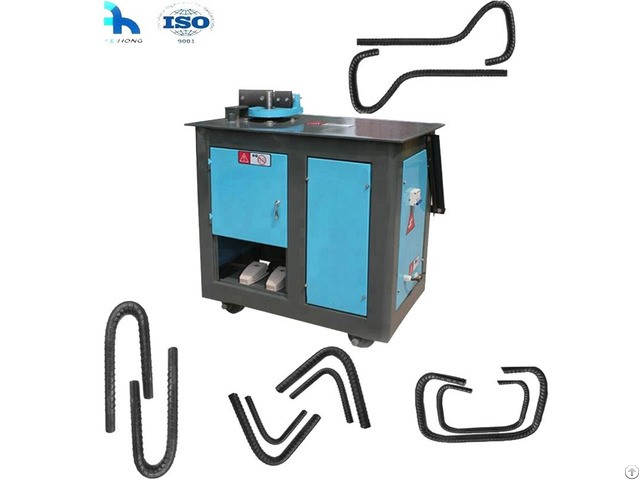

Small Wire Bender Rebar Bending Machine - China
price: 400.00 Dollar US$
Principle of the machine structure: The steel bending and bending hoop mainly consists of four parts: the transmission mechanism, the frame, the bending and bending hoop fixture and the electrical control.
During operation, the motor drives the gear via the V-belt and the pulley, and then the gear rotates the working disk.
Advantages of the Mini type bar bender (1 ) 11 teeth on one axis, high strength (2)High-frequency heat treatment of spline shaft, using high-strength gears to increase service life (3)Separation of spindle and work disk.
It is more convenient to disassemble and maintain.
(4)Spindle bearing adopts double seal (seal bearing and upper shaft seat plus seal) to prevent iron oxide enter the bearing during work.
(5)Configure foot switch and manual button for easier operation (6)Spindle with high frequency heat treatment, high toughness (7)Sturdy skid type baffle plate, effectively reducing the bending load of the motor.
(8)Pressure clutch is adopted, and clutch return is more accurate.
(9)The main shaft gear adopts semi-circular teeth to ensure that there is no winding phenomenon when the steel bar is bent.
(10)The bending process is simple, the work efficiency is high, the bending is neat, and the bending angle can be arbitrarily adjusted.
Technical Parameter Model FHGW-26 Long-term bending ability round bar 4--26mm 3 grade 4--25mm bending speed 32R/Min(90°) 28R/Min(135°) voltage 380V motor model 3Kw-4P Machine dimension 850x550x870 weight 190Kg operate method CNC/full automatic/manual Note: as your requested size, we can commission the machine you need.
Company Contact:
- Phone: +8615806593599
- Address: changjiangzhonglu , Qingdao , Shandong , China
- Email:
- Website: http://www.dfeihong.com
Published date: December 25, 2018 - Modified date: January 16, 2019
- Business Description: our main products: CNC Rebar Cage making Machine.
CNC Rebar Bending Center.
CNC Stirrup Bender.
CNC Rebar Cutting Production Line.
CNC Rebar Sawing & Thread Rolling Production line.
CNC Wire Straightening&Cutting Machine, steel wire mesh welding machine.
