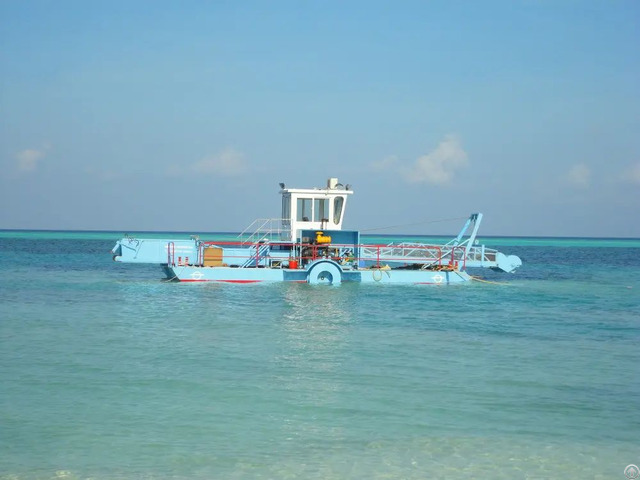

Seabed Aquatic Plant Harvester - China

1 - The seabed aquatic plant harvester can remove the aquatic plants from the sea bottom completely, including the root.

It is equipped with a hobbing cutter to dig sand and aquatic plant from the seabed.

The length of the teeth on the cutter is 20cm.

It can dig seagrass roots from 20cm depth of the sand.

The aquatic plant will be collected by the front chain belt and stored by the back chain belt.

When the back chain belt is full, the machine will sail to the bank or some barges to discharge the aquatic plant out.

2 - When working, the hobbing cutter will go under the water and rotate on the surface of the seabed.

During running, the curved cutters will dig the sand and remove the sea weed.

The paddle wheel can control the machine to move forward or back or turn around in proper speed.

When not working, the hobbing cutter will be pulled up on the surface of water by hydraulic winch.

Technical Parameters

Length Overall 16m Total Width 3.95m Total Depth 4.8m

Pontoon Length 11.6m Pontoon Depth 0.95m Pontoon Width 4m

Full Loaded Draft 0.5m Empty Loaded Draft 0.4m Collecting Width 1.5m

Displacement 18.2t Loading Capacity 3t Engine power 110kw

Designed Speed 10km/h Working Speed 3km/h Cruising Ability 24h

Driving Method Paddle Wheel
