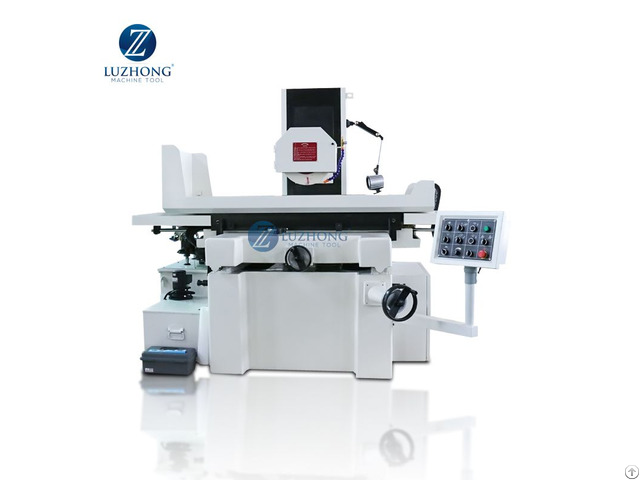

My4080 Surface Manual Hydraulic Metal Grinding Machine - China

The main performance characteristics：

1 - The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.

2 - Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.

3 - Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.

4 - The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.

Application：

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Product main technical parameters:

Specifications Units MY4080

workbench Worktable size (L * W) mm 800×400 Max.

travel of table mm 900×480 Table T slot (slot number x slot width) mm 3×14

Grinding head The grinding wheel size (o.

d * w * i.

d.

) mm Φ355×40×Φ127 Distance spindle center line to working table mm 600 Grinding wheel speed 50HZ r/min 1450 60HZ r/min 1680

The amount of feed Table longitudinal (left and right)0 speed m/min 3-25 Transverse(front and rear) feed handwheel feed Continuous (stepless) mm/min 240 Intermittent (stepless) mm/times 0-8 Handwheel per turn mm 5.0 Handwheel per lattice mm 0.02 The vertical (up and down) feed handwheel feed Handwheel per turn mm 0.8(1.0) Handwheel per lattice mm 0.01 Grinding head up and down is fast lifting speed (approximate value) mm/min 1000

Motor power Spindle motor Kw*P 4*4 Cooling motor W 125 Elevator motor W 180 Hydraulic motor KW*P 2.2*6

working accuracy The process surface of the base level of the parallel degree mm 300: 0.005 Surface roughness μm Ra0.4

Machine weight Net weight kg 2800 Gross weight kg 3200

External size (L * w * h) mm 2550×1650×2200
