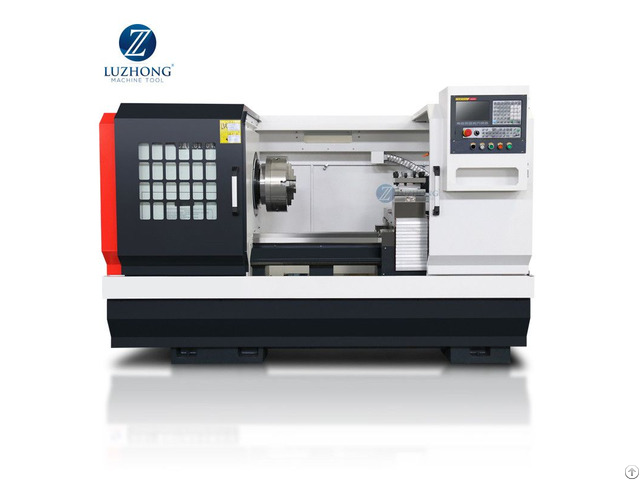

Hot Sale Flat Bed Cnc Turning Lathe Machine With Low Price High Quality Cak6150v - China
price: 5550.00 Dollar US$
SPECIFICATIONS Units CAK6150V
Swing over bed mm 500
Swing over cross slide mm 280
Distance between centers mm 1000/1500/2000
Spindle bore mm 82 (Optional 130)
Spindle bore taper - Metric φ90/1: 20
Spindle nose type - A2-8(A2-11)
Spindle speed steps - Stepless
Spindle speed range rpm 1800 (Optional 800)
Turret/tool post - Electric 4 position
Tool size mm 25 x 25
X axis travel mm 300
Z axis travel mm 1000/1500/2000
X axis rapid traverse mm/min 6000
Z axis rapid traverse mm/min 10000
Tailstock quill diameter mm 75
Tailstock quill taper - MT5
Tailstock quill travel mm 200
Main spindle motor kw 7.5
Coolant pump motor kw 0.125
Weight for 1000 kg 2900
Weight for 1500 kg 3300
Weight for 2000 kg 3700
Dimension for 1000 mm 2950x1700x1800
Dimension for 1500 mm 3650x1700x1800
Dimension for 2000 mm 4250x1700x1800
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: April 27, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
