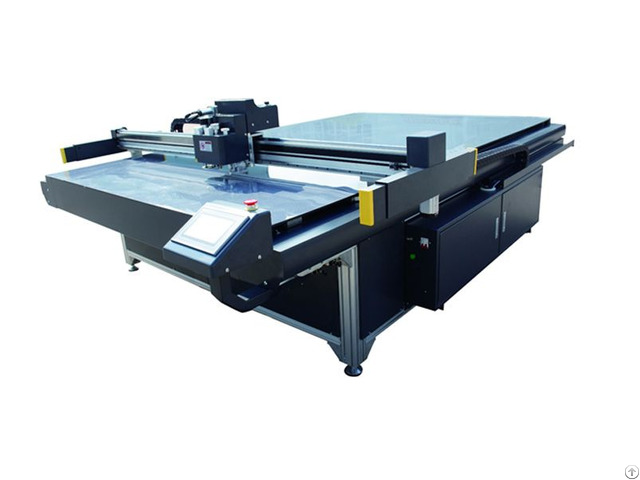

Honeycomb Paper Cardboard Carton Box Cnc Cutting Machine - China

Model HDCZ721310 HDCZ721713 HDCZ22516

Effective cutting area 1300*1000mm 1700*1300mm 2500*1600mm

Configuration Oscillating knife, kiss cut knife, drag knife, V cut knife, creasing wheel,, pen, laser positioning

Max speed 1400mm/s

Smallest cutting diameter 2mm

Maximum cutting thickness 30mm

Driver Servo

Cutting Precision ± 0.1mm

Repeat Precision ≤0.1mm

Function Oscillating cutting, creasing, dotted line, kiss cut, V cut, plotter drawing, laser positioning, infrared protection

Cutting material max 30mm thickness EPE/EVA, 15mm thickness corrugated, 3mm thickness gray board, 1.5mm thickness cardboard PVC film, etc.

Equipment composition Cutter table, control box, vacuum pump, air compressor

fixing method Vacuum pump adsorption .

Breathable cloth need cover film

Vacuum pump 5.5KW, 380V

Data port HPGL, DXF, PDF

Voltage 220v±10% 50Hz

Data port LPT/COM/USB port

Option Video registration system/V cut tool/Foam tool

Occupy dimension(L*W*H) 2200*1860*1180mm 2600*2160*1180mm 3400*2460*1180mm

Note Other size can be customized

Company Contact:

• Posted By: DONGGUANG YISONG CNC TECHNOLOGY CO.,LTD

• Phone: 13510468916

• Address: 3rd Floor, Huafeng Bld., Huangjin Road, Baima Village, Nancheng District, Dongguan City,, Dongguan , China

• Email:

• Website: https://himcnc.com

• Business Description: Dongguan Yisong High Technology Co., Ltd is a machinery company which is dedicated to automatic, intelligent and unmanned technologies research and development.

  We have our own production base and our own independent R&D center, core R &D team members come from Italy and Germany.



  Our main product is Environment-friendly Die Board Sawing Machine series, Auto metal rule blade bending machine, Auto Rubber cutting & installing machines, dualhead vibration knife cutting machine, Carton Box Sample Maker,Packaging Industry Plotter,CNC Rotary Cutting Machine,Flat& Rotary Die Board Making System,Robot Mode Auto Blade Bending Machine,Multi-bender Auto Blade Bending Machine,Die Board Making,Die Board Laser Cutting Machine, Plywood Cutting,Vibration Knife Cutting Machine,Die Laser Cutting Machine, Plywood Cutting machine.



  Our Environment-friendly Die Board Sawing Machine was developed by our independent R&D center.

  We have obtained more than 20 invention patents, 2 international invention patents are included.

  Compared with laser cutting, die board sawing machine is environment-friendly, more cost saving and high quality.



  Our Auto Rubber Cutting and Intalling Machine is the world first Auto ejection rubber cutting & installing for cutting die in the world.

  This machine also win many invention patents, and widely praised by companies in printing and packaging industry.



  Our Auto Metal Rule Blade Bender machine comes with bending angle measuring and feedback system, and auto blade head feeding system, so it is much more accuracy and efficient than other auto bender machines in the market.

  A brief history

  1999 Established research and development of computer cutting machine for clothing, computer cutting machine for shoe industry, laser knife drawing machine

  2000 Establishe d research and development of carton box computer proofing machine, carton computer cutting machine, high precision laser knife plotter

  2003 The paper box computer proofing machine was officially listed in the packaging industry and passed the ISO9001: 2000 international quality system certification.

  And launched the first box computer proofing machine in China.

  Successively set up offices in Guangdong (Dongguan), Ningbo, Qingdao, Quanzhou, Shenyang, and Chengdu

  2004 The South China office was upgraded to Guangdong Branch (Dongguan Aoke).

  Set up offices in Fujian, Chengdu, Dongguan, Shenzhen, Guangzhou, and Zhongshan

  2006 The carton computer proofing machine was awarded the “National Key New Product Certificate” jointly issued by the Ministry of Science and Technology of the People's Republic of China, the Ministry of Commerce, the General Administration of Quality Supervision, Inspection and Quarantine and the State Environmental Protection Administration.

  And signed a cooperation agency agreement with British AGCAD, the box proofing machine entered the European market

  2007 The monthly sales volume of cutting machines exceeded 300 units.

  Developed four computer-headed carton and carton proofing machines and electronic die-cutting proofing machines.



  2009 Develope d the series high-speed computer cutting and proofing system, and obtained the Shanghai Municipal Science and Technology Small and Medium Enterprise Technology Innovation Fund Project Certificate Aoke develops series computer jam machine and obtains core component invention patent

  2010 Passed Shanghai high-tech enterprise certification and obtained high-tech enterprise certificate.

  Aoke Carton Box Computer Proofing Machine Obtained Shanghai High-tech Achievement Transformation Project Certificate

  2011 Branch has developed positioning electronic die-cutting machine and series force-control electronic die-cutting machine.

  Aoke developed milling cutter series proofing system

  2012 Relocated to Songjiang Science and Technology Park near Songjiang University Town.



  2013 The monthly sales volume of the cutting machine broke 400 sets, and Aoco developed the series cutting proofing system.



  2015 series high-speed computer cutting proofing machine sales hit a new high

  2017 develops series flat cutting proofing system

  2018 developed series flat cutting proofing system

  2020 new series double-gray board box high-speed cutting and proofing machine is sold in the customized market, and has been purchased and praised by customers.



  2021 Environ ment-friendly Die Board Sawing Machine was developed by our independent R&D center

  2022 Auto Rubber Cutting and Intalling Machine is the world first Auto ejection rubber cutting & installing for cutting die in the world.

  This machine also win many invention patents, and widely praised by companies in printing and packaging industry.



  2023-2024 Auto Metal Rule Blade Bender machine comes with bending angle measuring and feedback system, and auto blade head feeding system, so it is much more accuracy and efficient than other auto bender machines in the market.
