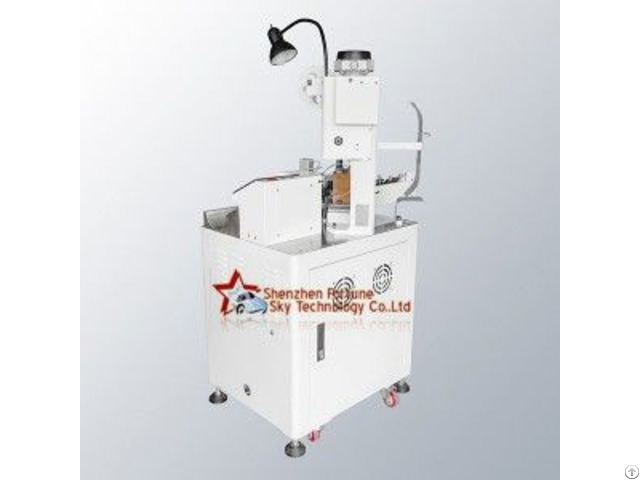

Fully Automatic Gold Plated Contact Wire Terminal Crimping Machine - China

Fully Automatic Gold Plated Contact Wire Terminal Crimping Machine Equipped with reliable high-precision technology, CM-D01 uses a compact module design, the highest speed of processing can be up to 5000pcs per hour, a variety of configuration options can be directly processed wire harness from AWG18 to AWG28, use the optimal combination of components to ensure excellent productivity.

Feature: Compact modular design, greatly reducing the machine footprint.

High-end and high-precision components ensure reliable quality.

Easy operation can be realized through touch screen and iconized KINCO software.

Can be a one-time rapid completion of wire cutting, wire stripping, lug crimping, wire twisting.

Speed, high output, a greater limit for the enterprise to save labor.

Description: Product Type: CM-D01 Name: Gold Plated Contact Wire Lug Crimping Machine Product Features: Double-ends wire cutting, stripping, one end crimping, the other twisting, can be full stripped and half stripped.

Appearance size: 700 long X600 wide X1500 high (MM) Machine weight: 213KG (including wooden box package) Display: digital LCD touch screen Run mode: automatic operation + manual operation Adjust the knife way: electric knife Tool material: Sweden ASP60 powder high speed steel Pneumatic accessories: Original Asia off Screw Guide: Taiwan’s original silver Cutting line length: 20mm-999999mm Cutting line tolerance: change range 0.01mm + cut length x0.2% or less Stripping length: 0.00MM-12.00MM Suitable wire: AWG18-AWG28 Cutting line speed: about 7600 / hour Processing capacity: about 4200 / hour Terminal pressure: Standard 2.0T, other crimp force need to order Air pressure: 5KG (requires stable and dry air) Configuration Power: AC220V Rated power: 0.75KW Detection device: 1 - Lug detection; 2 - Wire detection; 3 - Crimp detection; 4 - Air pressure detection
