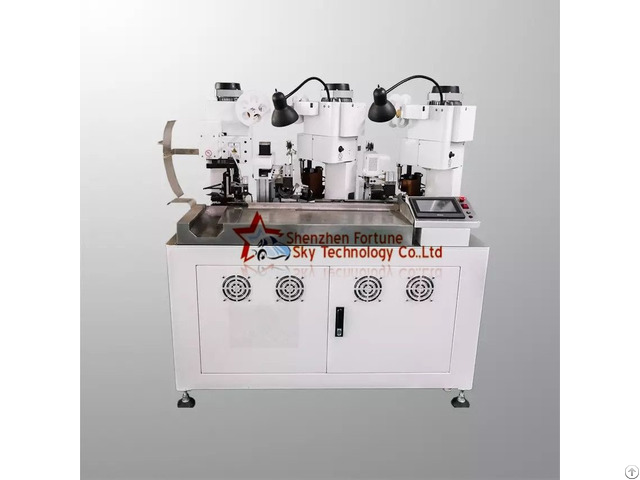

Fully Automatic Double Wires Three Terminals Crimping Machine - China

Feature: (1): high degree of automatic mechanical equipment, through the simple training ordinary worker can operate two fully automatic numerical control terminal crimping machines for crimping three terminals to splice two wires.

(2): design adopts modular design, easy to adjust the machine, the use of standard parts, low maintenance costs; the use of high-end electrical control, independent development programme, man-machine interface, easy to learn, easy to operate.

(3): high efficiency, stable and intelligent.

(4): full automatic numerical control terminal crimping machine for crimping three terminals of two wires adopts touch screen full digital design.

(5): parameters such as, cutting length, stripping length, cutter value, half stripping value, depth of crimped insulation and so on, can be operated on touch screen, and adjust the electric cutter design, improve the production efficiency, is currently the highest degree of automation, with the highest efficiency model in the market.

Description: Model No: CM-N03 Name: Fully Automatic Double Wires Three Terminals Crimping Machine Machine Function: wire cutting, both-ends wire stripping, single-end half stripping, single wire single-end crimping, single wire double-ends crimping, double wires crimping, double wires single-end crimping, double wires three ends crimping Dimension (LxWxH): 1000x750x1650 mm Net Weight: 480KG Display: Color touch LCD Operation Method: Automatic and Manual operation Cutter Adjust Method: By electric Cutter material: high speed steel Pneumatic accessory: original AIRTAC Lead Screw Guide Rail: Taiwan HIWIN guide rail, TBI lead screw Wire cutting: 50-9999mm (the shortest cutting length is decided by crimping mold) Cutting Accuracy: cutting length less than 100mm, this deviation is 0.3mm+(the set cutting length x0.2%) Cutting length more than 100mm, this deviation is 0.5mm+(the set cutting length x0.2%) Stripping Length: Wire front stripping: 1.00-8.00mm (half stripping length: 2.00-8.0mm) Wire tail stripping: 1.00-8.00mm (half stripping length: 2.00-6.0mm) Suitable terminal: Horizontal terminal, vertical terminal, flag terminal Suitable wire size: AWG16 to AWG28 Production: Three terminals crimping: 2500 pcs per hour (is equivalent to wire AWG28-AWG16, cutting length 120mm) Double wire equal crimping: 3800 pcs per hour (is equivalent to wire AWG28-AWG16, cutting length 120mm) Single wire both-ends crimping: 4200 pcs per hour (is equivalent to wire AWG28-AWG16, cutting length 100mm) Single-end crimping: 4500 pcs per hour (is equivalent to wire AWG30-AWG16, cutting length 100mm) Terminal force: standard 2.0T, others can be custom.

Air pressure: 5-6kg/cm2 above (requires for stable, clean and dry air) Power: AC220V 2.5KW Detection device: wire detection, wire knot detection, crimped terminal detection, air pressure detection.
