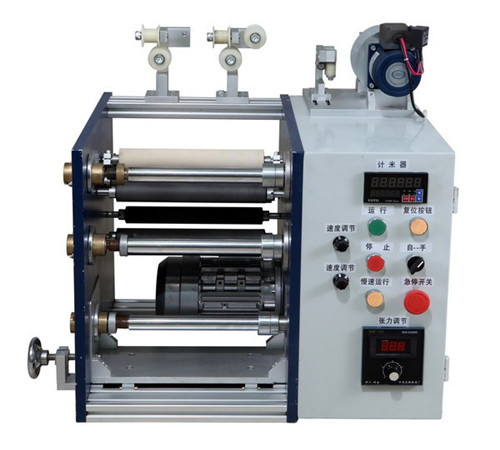

Delish Mini Slitter 450mm Rewinding Machine - China

Delish Mini slitter(450mm) Specifications

Max.

jumbo width: 450mm

Max.

speed: 100m/min

Max.

jumbo dia: 300mm

Jumbo position: Left/right

Max.

rewinding dia: 90mm

Rewind way: Double shafts

Core dia: 1/2”& 1”

Install: Winding with core

Blade holder: 5pcs

Slitting by: Square blade

Power: 0.75KW

Speed control: Frequency

Power supply: Single phase

L*W*H mm: 1152*1132*524

G.

W: 100kg

Air power: None

Main functions:

1, Mini slitter(450mm) can divide long ribbon or foil

rolls into several shorter rolls

2, Mini slitter(450mm) can dividing the wide ribbon or

foil rolls into several narrower rolls

3, Rewinding the stocked ribbon or foil rolls to new

rolls as required.

4, Changing the inksides or the winding direction of

the ribbon or foil rolls

5, Re-slitting the bad finished ribbon or foil rolls.

6, Rewinding the special rolls which film is winding in

the middle of paper core and the core is too long for

slitting on big slitter.

7, It can be specially designed if special task

required

Company Information

Xiamen Delish Automation Equipment co., ltd is the

professional producer of TTR slitting machines, hot stamping

foil slitting machines and the small corollary equipments.

Starting from 2000, basing on the experience of German

Technique of film slitting, we have developed our 1st

generation TTR slitter and got the government award of this

technique.

All our machines are with CE certification.

the

highest speed of our current TTR slitter is 250m/min.

its

auto-tension control system is very easy to be operated.

Main electronic parts are adopting the international brands

such as SIEMENS PLC and Touch Screen, SANYO SERVER motors

and AIRTAC parts.

All this will make our machines with

higher quality assurance and better after sales and

maintenance.

Two rewinding shaft 250mm mini slitter:

Usage:

1 - Specially designed as the desk top mini slitter for

TTR films like fax ribbon, barcode ribbon, coding foil and

hot stamping foil.

2 - It is for ink side in/out, 1 inch and 1/2 inch core

change, long length to short length rewinding and slitting

work

3 - The max.

unwinding roll diameter is in 300mm

Company Contact:

• Posted By: Xiamen Delish Automation Equipment Co., Ltd

• Phone: 865927236866

• Address: Xiamen Tong'an industrial cluster, Xiamen , China

• Email:

• Website: http://xmslitter.en.alibaba.com/

• Business Description: Our company is a professional producer of TTR slitting machines, hot

  stamping foil slitting machines and small corollary equipment.

  Starting

  from 2000, based on the experience of German Technique of film slitting,

  we have developed our first generation TTR slitter and got the

  government award for this technique.

  All our machines are with CE

  certification.

  The highest speed of our current TTR slitter is 250m/min.

  It is in auto tension control system, very easy to be operated.

  Main

  electronic parts are adopting the international brands such as Siemens

  PLCs and touch screens, Sanyo server motors and Airtac parts.

  All these

  will make our machines with higher quality and better after sales

  services and maintenance.
