Cnc Polycrystalline Diamond Pcd Tipped Right Hand Rotation Router Bits - China

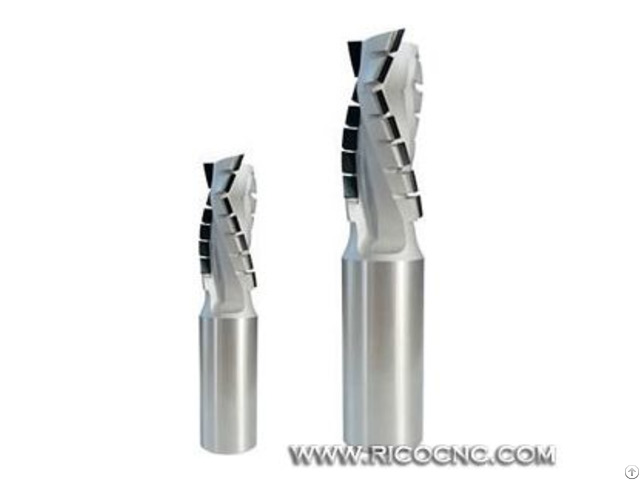

CNC Polycrystalline Diamond (PCD) Tipped Right Hand Rotation Router Bits

This industrial CNC Polycrystaline Diamond (PCD) router bits is the top of the range PCD tool for CNC nesting.

With 3+3 shear cut design feature, this durable cutter ensures a clean finish on both top and bottom surfaces of your work piece.

Designed to perform at highest feed rates.

Plunge cut facility also.

The router bits are specially designed for industrial CNC applications in a variety of tough, abrasive materials such as particleboard, MDF, veneer, hardwood, plywood and melamine.

The bits are ideal for cutting, jointing and rabbeting in these materials.

Our 3-flute diamond bit features a solid carbide tool body and a short upcut and like our 2 flutes it’s suitable for nesting cuts.

The cutting edges shear toward the center of the material in an up/down angle, to provide a very clean cut on laminated materials.

This bit can be sharpened 6-8 times when used under normal wear conditions.

PCD Diamond Router Bit Features:

Blade Material: PCD Tipped

PCD Tip Height: 4 mm

Flutes: 3

Tooth Shape: Axial

Tooth Seating: Straight

Cotting Geometry: Positive

Max RPM: 24000

Re-sharpen: 6-8 times

Applicable Machines: NC or CNC router, or fixed head routers with an auto-feed

Applicable Materials: Raw material, melamine and laminated, particle board, MDF, HPL and veneered panels.

We can also supply you other edm consumables spare parts and cnc spare parts.

Payment can be made by Western Union, Paypal, T/T.

Welcome your inquiry!
