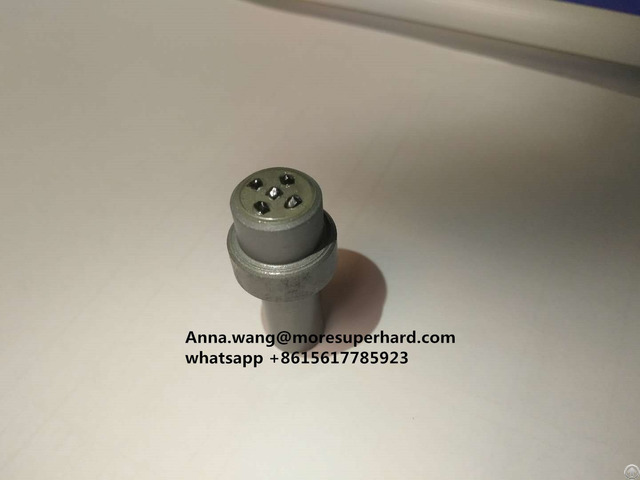

Chisel Point Diamond Dressers - China

Chisel Type Diamond Dressers

chisel diamond dressing tools

diamond dresser for grinding wheel

diamond dressers are used for dressing specific forms into conventional abrasive grinding wheels require longer tool life.

Natural diamond have very high resistance while they could be easily broken and have unsteady tool life.

On the other hand, synthetic diamonds (CVD) have steady tool life.

Generally, the bigger radius of diamond can ensure longer tool life.

However, the much bigger radius can get grinding wheel to be burned because it makes the grinding wheel's grit blunt.

Customers can choose diamond carat and materials dependent upon working conditions such as wheel size, wheel width, depth of cut, etc.

*Type: Single-point Diamond Dresser

*Material: Natural Diamond; Synthetic Diamond

*Is Customized: Yes, (The tools can be customized according to customer’s requirements)

*ODM & OEM Service: Accept

*MOQ: 5pcs; 10pcs; 100pcs all accept.

Specification:

Specification Material Work Area

C5010—L1509 CXT+CVDD Grinding Wheel Diameter<250mm, Grain Size 80#—120#

C5010—L161616 CVDD Grinding Wheel Diameter<250mm, Grain Size 60#—150#

C5010—L202020 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—150#

C5010—L501515 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—60#

C5010—4*L901010 CXT Grinding Wheel Diameter<250mm, Grain Size 46#—100#

C5010—4*L701010 CVDD Grinding Wheel Diameter<250mm, Grain Size 46#—60#

C5010—4*L700808 CVDD Grinding Wheel Diameter<250mm, Grain Size 60#—80#

C5010—4*L700606 CVDD Grinding Wheel Diameter<250mm, Grain Size 80#—120#

C5010—4*L901212 CVDD+MD Grinding Wheel Diameter<250mm, Grain Size 46#—100#

C5010—4*L901212 CVDD+MD Grinding Wheel Diameter<250mm, Grain Size 46#—60#For instance, C50 10 —5*L 901515

C50: Length of Shank 50mm

10: Diameter of Shank 10mm

5: Amount of Diamond Logs 5

90: Length of Diamond Log 9mm

15: Width of Diamond 1.5mm

15: Thickness of Diamond 1.5mm Item No: Approx Carat Grinding Wheel Size (mm) Material

HS018 0.18 Ø150x25 or smaller Natural Diamond Synthetic Diamond

HS020 0.20 HS025 0.25 HS035 0.35 Ø150~Ø300x25 HS050 0.50 HS075 0.75 HS010 1.0 Ø300~Ø450x25~40 HS015 1.5 Ø450~Ø600x50~100 HS020 2.0 Ø600/or larger HS030 3.0 HS035 3.5-5 Skype: Annawng

WhatsApp: +861561778592 3
