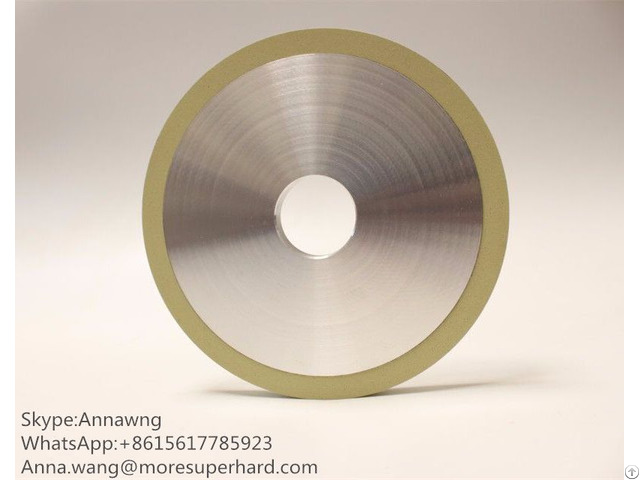

Ceramic Diamond Girdle Wheel - China

Diamond Bruting Wheels

Shape Material Grit size Application 1A1 SDC 180 180*10*32*10 For tools

1A1 SDC 320# 180*6*32*10 For Tungsten steel

11A2 SDC 100# 125*30*32*10*10 For Tungsten steel

11A2 SDC 180# 100*40*32*5*5 For Tungsten steel

1A1 SDC 150/200# 200*5/20*32*5/10 Grinding magnetic core

Punch machine SDC 180# 100*25*25.4*3*5 Punch machine

1A1 SDC 180# 50*3*10*5 Grinding magnetic core

1A1 SDC 300/600# 200*23*60*17.5*10 PCB

11A2 SDC 1500# 100*32*20*5*10 Universal grinding machines

3A1 SDC 1000# 135*15*31.75*2*10 PCB micro drill

11A2 SDC 150# 125*32*32*5*5 Wordcut tools

1A1 CBN 400# 205*12*31.75*8/10 Chrome steel cutting tools

We provide the standard GB / T6409.2-1996 resin bonding agent superhard material grinding wheel, diameter range: ф20 ~ 700mm, grinding wheel thickness: 5 ~ 300mm, abrasive grain size: 60/70 ~ W3.5 - And according to user requirements design and manufacture of non-standard abrasive.

Advantages Of Diamond Bruting Wheels

1 - Grinding efficiency, while grinding wheel consumption is relatively slow;

2 - Self-sharpening is good, the grinding heat is small, not easy to block, reducing the phenomenon of work burn when grinding;

3 - Wheel has a certain elasticity, is conducive to improving the surface roughness of the workpiece, mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes;

4 - Diamond resin wheel is low temperature curing, short production cycle, equipment and supply process is relatively simple; due to the resin with mobility, easy to shape the surface of the grinding wheel.

Our story

Grinding gemstone grinding wheel is a dedicated grinding stone, because of this product it has specific requirements, which means that the gem itself is a relatively hard and brittle material, therefore, grinding gem grinding wheel material density Must be selected to smooth grinding, at the same time, the wheel itself should be wear-resistant and so on.

Here, some manufacturers or companies in order to save costs, grinding gem grinding wheels are also selected corundum grinding, but the effect is not good silicon carbide, because this abrasive has a certain degree of toughness, the hardness of the abrasive itself is not a high, Therefore, in the actual production, the latter still use the majority.

The grinding gem grinding wheel of choice, depending on the brightness of the gem required, generally useful 24 #, 36 #, 46 #, 60 #, 80 #, 100 #, 120 # (diamond grinding wheel size is W20, W40, W60, W80), etc., the brightness is not high on the use of coarse particles as much as possible to make useful, which can speed up the processing speed to improve efficiency and reduce costs, on the contrary, the choice of fine-grained to achieve the requirements of the finish.

Our engineers overcame the technical problems of ceramic bonded diamonds and took the lead in producing the diamond-bonded ceramic bonded grinding wheel in China.

We also formulated a variety of grinding wheel specifications and won the favor of the diamond processing field.

In recent years, research and development of grinding PCD / PCBN tool ceramic bonding agent diamond grinding wheel, diamond composite diamond grinding wheel and other series of ceramic bonded diamond grinding wheel in the market has made a good reputation.
