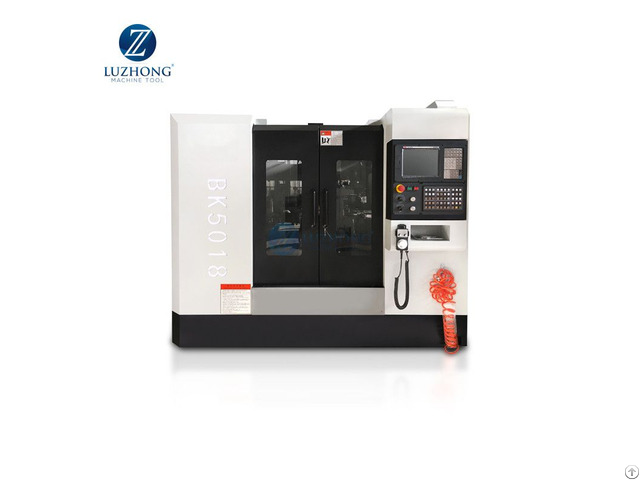

Bk5018 High Quality Metal Slot Cnc Slotting Machine - China

The main performance characteristics： 1 - The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining, 2 - Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3 - The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4 - Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5 - Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application：

This machine be used for interpolation plane, forming surface and Keyway Etc.

And can insert the inclination in the 10° Mold and other within the scope of etc.

work matter,, Enterprise suitable for single or small batch production.

Product main technical parameters:

Specifications unit BK5018

Max.

ram slotting length mm 180

Ram moving frequency per minute times/min 20-120

Ram vertical adjustment distance mm 80

Distance from cutter head to column surface mm 480

Distance from ram lower end to table surface mm 400

Table size mm 600x320

Table travel (X/Y) mm 320x320

X axis motor torque N.

M 6

Y axis motor torque N.

M 6

Y axis rapid traverse M/min 5

X axis rapid traverse M/min 5

Main motor power Kw 3.7

Machine weight kg 1800

Dimensions Mm 2200x2100x2300
