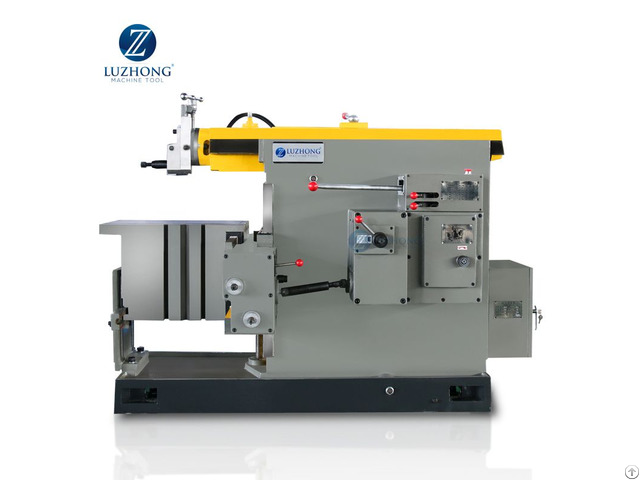

Bc6063 Mechanical Type Horizontal Shaping Planning Machine Supplier With Ce Iso Certification - China
price: 6000.00 Dollar US$
Product main technical specifications：
Specifications Units BC6063 BC6066
Max.
ram shaping length mm 630 660
Ram moving frequency per minute times/min 14-80 14-80
Table size mm 630X400 660X400
Table horizontal travel mm 630 630
Table vertical travel mm 360 360
Distance between ram lower end and table surface mm 385 385
Tool head travel mm 120 120
Tool head tilt angle ° ±60 ±60
Tool shank size mm 20X30 20X30
Table T-slot width 18 18
Main motor power KW 3 3
Machine weight kg 1870 1920
Overall dimension(L*W*H) mm 2000X1300X1650 2000X1300X1650
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: May 10, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
