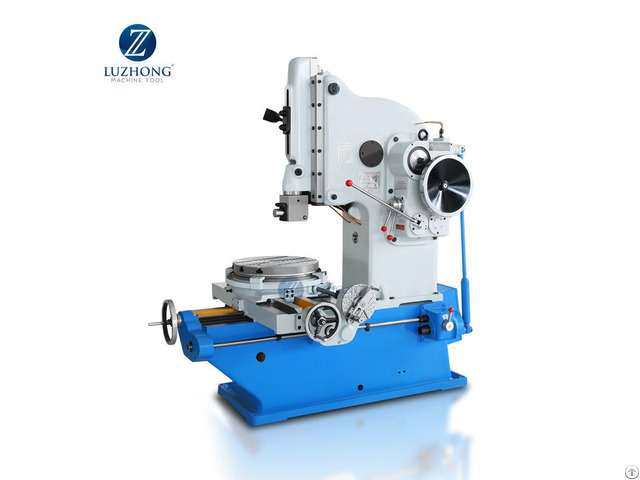

B5020 Metal Automatic Vertical Slotting Machine With High Quality - China

The main performance characteristics： 1 - The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2 - Machinery transmission mechanism with sliding pillow reciprocating motion and Machinery feed device for working table.

3 - The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

Application：

1 - This machine be used for interpolation plane, forming surface and Keyway Etc.

And can insert the inclination in the 10° Mold and other within the scope of etc.

work matter,, 2 - Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification Unit B5020

Max.

ram slotting length mm 200

Ram moving frequency per minute times/min 32-125

Ram tilt angle ° 0-8

Ram vertical adjustment distance mm 230

Distance from cutter head to column surface mm 485

Distance from ram lower end to table surface mm 320

Table Diameter mm 500

Table longitudinal travel mm 500

Table cross travel mm 500

Table rotation angle ° 360

Table feed range (longitudinal and cross) mm 0.08-1.21

Table rotary feed range mm 0.052-0.783

Main motor power kw 3

Rapid traverse motor power r/min -

Machine weight kg 2200

Overall dimension mm 1916x1305x1995
