Waste Plastic Oil To Diesel Distillation Machine - China

Nowadays, how to convert tyre to pyrolysis oil is no longer a problem .

By using the waste plastic to fuel oil recycling equipment, we can get pyrolysis oil from waste plastic.

Secondly, with the help of waste plastic oil to diesel distillation machine, the pyrolysis oil can be further refined into diesel oil that fetch a better price than pyrolysis oil on the market.

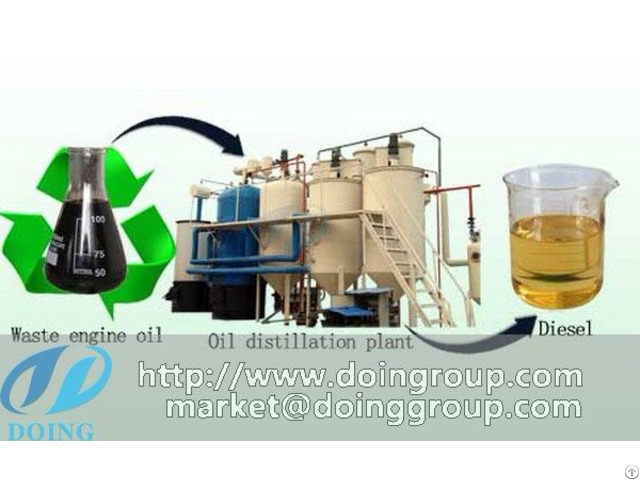

Besides, Waste plastic oil to diesel distillation machine can also transform other waste oil into diesel and asphalt, such as plastic/rubber pyrolysis oil, waste engine oil generated from vihicles and ships etc.

Waste plastic oil to diesel distillation machine use the theory of distillation, a green technology.

The whole refining process includes distillation, cooling, decoloring and deodoring system.

Waste plastic oil to diesel distillation machine include many parts : distillation reactor, condenser, oil tank, catalytic reactor, water seal device, boiler, conduction oil tank, conduction oil buffer tank, dedusting system, draft fan, chimney, control cabinet, vacuum system.

Waste plastic oil to diesel distillation machine working process :

1 - Prepare waste oil

put waste oil in the waste oil refining plant for further process;

2 - Heating for distillation

heat waste oil in non-oxygen environment, which will start to boil and evaporate; at the same time, heat conduction oil also transfer heat to waste, so the temperature goes up very quickly.

3 - Cooling

put those vapors through a cooling pipe and the vapors will condense to liquid, while some of the vapors with shorter hydrocarbon lengths will remain as a gas.

4 - Chemical process for cleaning the distillation oil

the exit of the cooling pipe is then going through a bubbler containing water to capture the last liquid forms of fuel and leave only gas that is then burned in the reactor;

5 - Collect final diesel product

this kind of diesel oil will be piped into deep purifying system with acidity and alkaline cleaning device as well as pressure filtering system.

The color of the diesel directly produced from the standard distillation system is brown yellow.

The purification system could make further purification for the diesel, thus to get light yellow color.

Advantage of waste plastic oil to diesel distillation machine :

1 - Fast heating system

All the system is sealed, so the loss of heat is less.

Conduction oil is for recycling use, which can save a lot of heating fuel for you.

No smell and smoke produce, so there is no harm to the workers.

conduction oil doesn’t heat reactor directly, and it is helpful to prolong the life of the reactor.

Coil heater can make heating evenly and fast.

Combined with indirect heating system, the reactor can keep hot for longer time, so the whole process is faster with less fuel.

2 - Vertical design From our design, It is very easy to clean the slag, asphalt residues will be discharged from the bottom of the vertical reactors automaticly.

3 - Continuously working

When operating the machine, first you pump oil inside the reactor to heat；after finishing heating, it will become oil gas and goes to cooling system, then goes to oil tank.

So, the first reactor is empty, no need to stop, you could pump another tank of waste oil again into the first tank, continuously working.

4 - High purity

The oil recovery rate is about 85%.

The diesel oil or gasoline we finally get from this plant has clean, transparent color and qualified smell, which can be widely applied in tractors, trucks, generators, boilers, agricultural vehicles etc.

and will produce less smoke and less noise than regular diesel fuel.

5 - diesel further purification system

What liquefied from the condenser is the non-standard diesel oil of brown and yellow.

After being further deodorized and decolored in diesel further purification system, we can get high purity and and light yellow diesel oil.

Products of waste plastic oil to diesel distillation machine:

Products of waste oil refining plant include 85% diesel, 10% asphalt, 5% water and other impurities.

The final diesel after refining can be used for tractors, trucks, ships and diesel oil generators etc, and asphalt usually for paving and refinery.

Exhaust gas
