Fume Extractor For Laser Marking Machine - China

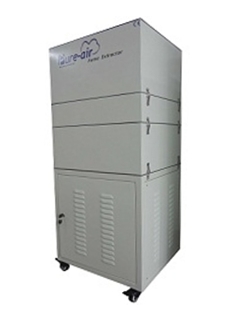

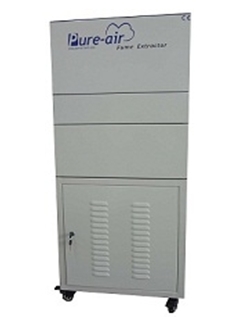

PA- 300TST Fume Extractor for laser Marking Machine

Sutiable for dust collection & air cleaning to the

fumes/ dust/ smell during small working area laser engraving &

laser marking processing.

TaiWan imported brushless blower, 4

layers filters’ filtration to ensure high efficiency

purification.

♦ 1 - European imported brushless blower, low noise, high

rotate speed, running steady, long life, energy saving, high

efficiency;

♦ 2 - PWM speed control, according to the amount of dust to

achieve precise adjustment;

♦ 3 - Four layers filtration to ensure filtrate harmful

material of the fumes completely, to achieve room air

quality standard, protect environment and people’s health;

♦ 4 - Prefilter, Medium Efficiency Filter & main filter both

can replace individually, extend filter’s use life and

reduce filter replacement cost;

♦ 5 - Metal framework structure desgin, equipment with small

size, saving floor space and can be movable easily.

Specification:

Air Flow: 300m3/ h

Voltage / Frequency: 20V, 50Hz

Input Power: 130W

Air Pressure: 2500Pa

Filtration Rate: 99.97% @ 0.3μ m

Filter Type: G4 primary Filter + F8 medium efficiency filter+

H13 HEPA filter + gas filter

Noise: ≤ 55dB

Exhaust Arm: φ 63mm x 1.2M

Machine Dimension: 250* 415* 450mm

Machine N.

W: 16kg

Company Contact:

• Posted By: DONGGUAN PURE-AIR TECH CO.,LIMITED

• Phone: 15913809067

• Address: 3rd floor, 2# Factory, Shangpengmiao, Shimei, Wanj, DONGGUAN , China

• Email:

• Website: https://www.pure-airtech.com

• Business Description: Dongguan Pure Air Tech Co., Limited has well expertise in the field of

  industrial fume & dust extraction and filtration.

  We are environment protection pioneers, so we are developing the latest industrial fume & dust filtraion solutions for many industries, like Laser Processing, Electronics & PCB baord Producing, Automobile & Machinery Manufacturing, Printing & AD processing, Food, Pharmaceutical & Tobacco Manufacturing, Lab, Beauty & Medical work industries.

  Dongguan Pure Air Tech Co., Limited factory and head office are located in Dongguan, China.

  Through long time product development, we can offer few different fume extraction systems to meet our distributors and end users demands.

  Of course, with our in time full series service.
