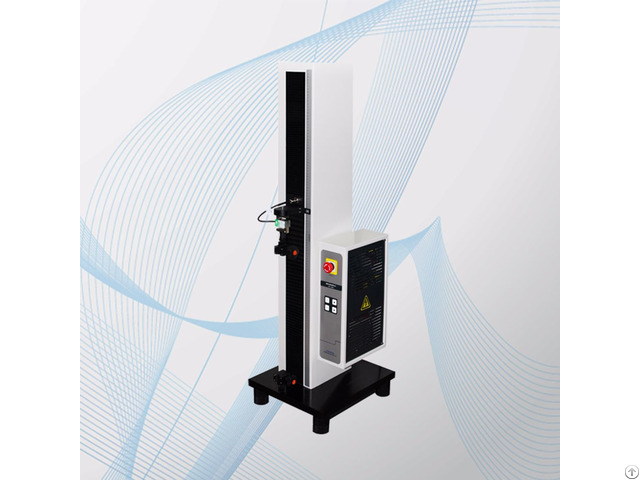

Ampoule Breaking Force Testing Machine Tensile Tester - China

Application

Tensile tester applies to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style/90/180 peeling strength, widely used in food and pharmaceutical industries, quality inspection departments as well as research and development institutions.

Main feature

1: 3 patents and 2 counts of software copyright registration.

2: Bilingually controlled by computer and embedded system.

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive.

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running, < 25db@1000.

Technical indexes

Load cell range 5N, 50N, 100N, 250N, 500N, 1000N, 1500N(personal customization available)

Accuracy Better than 0.05%FS

Displacement resolution 0.001mm

Test speed 0.01~1000mm/min

Travel distance 1100mm

Sample width 38mm customization

Sample thickness 8mm customization

Dimension 380mm(L) *450mm(B) * 1309mm(H)

Power supply AC 110V 60Hz

Net wight 92KG

Company Contact:

• Posted By: SYSTESTER Instruments Co.,ltd

• Phone: 18765299783

• Address: jingshi road, jinan , shandong , China

• Email:

• Website: http://www.systester.com/en

• Business Description: SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.

  SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities as well as successful experience accumulation over 20 years.

  SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.

  We can provide：

  ● Flexible packaging test integrated solution

  ● Test instruments

  ● Customization

  ● Embedded system, computer analytical software

  ● Heart to heart service

  SYSTESTER always make it as our strategic mission, that is “Your goal is just our goal”
