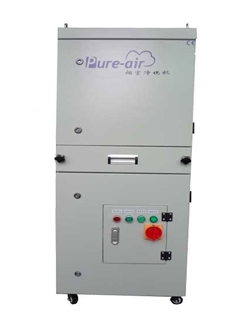

Welding Fume Filters With Ce Certification - China

Welding Fume Filters With CE Certification

Suitable for fume filtration and dust purification from

different industry processing like big workpiece welding

above 100CM wide, metal polishing, turning, etc.

1, Operating Principle

1) Through the blower’s gravity effect, wedling fumes/dust

has been sucked to fume extractor’s air inlet through

universal dust hood, there’s fire barrier in the air

inlet, spark will be stopped by fire barrier once go through

it;

2) Fume & gas will enter to dust setting chamber.

Take use of

gravity & upgoing airflow, big particles firstly fell to

dust hopper, small particles fumes will becapture outside by

cartridge;

3) Clean gas been filtrated by cartridge filter and flow

into clean room, then exhuast outside from air outlet.

When

cartridge filter blocked, customer can removal it easily

and reuse after cleaningsurface dust of cartridge filter by

air compressor.

4) When the filter cartridge is about to blocked, can

removal it, use compressed air to blowback surface dust of

cartridge, then continue to use.

2, Main Components

♦ Metal Plate case;

♦ Universal exhaust arm;

♦ Vacuum hose with high temperature resistant;

♦ Dust hood(with air flow control valve);

♦ Fire barrier;

♦ Flame retardant HEPA cartridge;

♦ Clean room;

♦ Ash drawer;

♦ Glass down;

♦ Castors with brake;

♦ Blower & Electronic Control Panel, etc.

3, Product Feature

Specialized Blower and Moto, take prevent overload circuit,

which can prevent blower been burnout, high safety, stable

work performance.

Blower connected by high pressure hose, this

canmake sure fume extractor always in good working

condition.

Filter cartridge use Americanimported material,

long working life, it can filtrate dust particles less than

0.3μm, also have very good filtration effect to wet &

sticky dust.

Remarks: Welding fume extraction test under standard

environment, if air flow 3600m3/h means the achieved air flow

at the air outlet of the equipment.

Filtration area 15m2,

means the area of consumable filter.
