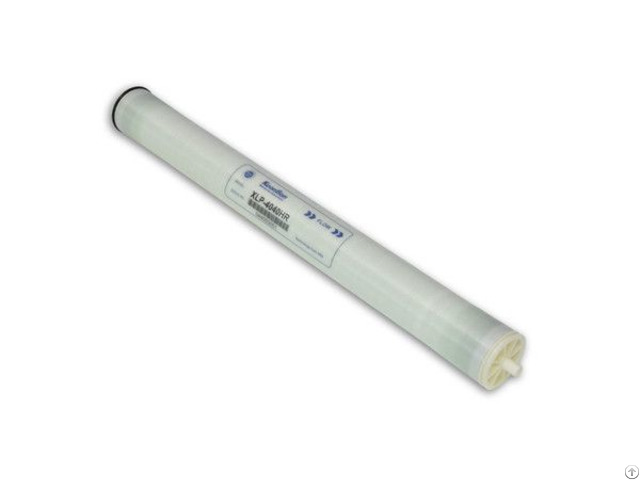

Extreme Low Pressure Ro Membrane Element Xlp 4040 Xl P 4040hr - China

Product Categary: Industrial Membrane Element Main Feature: It can save energy and increase economic efficiency with its advantage of extreme low working pressure.

USAGE

It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1000ppm.

It can be widely used in pure water preparation and related industries.

SPECIFICATIONS & PARAMETERS

Model : XLP-4040 Permeate Flow GPD(T/D) : 2400(9.1)

Stable Rejection Rate (%) : 99.0 Model : XLP-4040HR

Active Membrane Area ft2(m2) : 85(7.9)

Permeate Flow GPD(T/D) : 2000(7.6)

Stable Rejection Rate (%) : 99.2 STANDARD TEST CONDITION

Concentration of Solution : 500ppm (NaCl)

Temperature(℃): 25

pH Value : 7.5-8

Operating Pressure psi(MPa) : 100(0.69)

Recovery Rate(%) : 15 Notes: The permeate flow of single membrane element may vary with in ±15%.

Operating Limits and Conditions of Membrane Element:

Max.

Working Pressure : 600 psi(4.14MPa)

Max.

FeedWater Temperature : 45℃

Max.

Feed Water Flow : 3.6m3/h

Max.

FeedWaterSDI15 : 5.0

Free Chlorine Concentration of Feed Water : 0.1mg/L

pH Range of Feed Water During Continuous Operation : 2-11

pH Range of Feed Water During Chemical Cleaning : 1-13

Max.

Pressure Drop of Single Membrane Element : 15psi(0.1Mpa)
