Malleable Iron 45d Angle Connector A Competitive Price - China

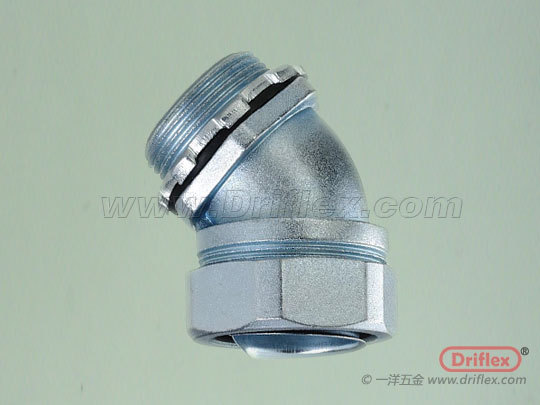

Malleable iron Conduit Fittings- 45d Angle

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ ASME B1.20.1- 1983, Comply with stands AS/ NZS 2053 - 8, hexagonal pressure nut, sealing ring and ferrule

Material:

•Connector body - Galvanized die casting，zinc plated steel& malleable iron， nickel plated brass, stainless steel.

•Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron，nickel plated brass, stainless steel.

•Sealing ring - Nylon 66

•Ferrule - Galvanized steel

Features:

•Simple, one piece installation provides a quick and reliable liquid- tight seal

•IP rating from IP40 to IP66/ 67/ 68 in combination with the corresponding flexible conduits

•High mechanical strength

•Highly liquid- tight and dustproof

•Vibration and tensionproof

•Inherently low fire hazard

•Covering of the conduit ends

•Available in straight, 45o and 90o bodies

•Available in ISO Metric and NPT 、PF、PG，B SP etc.

threads

Applications:

•General indutrial and commerical electrical wiring protection

•Machining centres and robotics

•any narrow space in static applications

•General wiring for OEM applications

•Low fire hazard applications

•Underflooring wiring in office buildings

•Machine tools

•Installations where liquid- tight is a requirement

•Outdoor installation

Superior is our life

High efficiency is our power

Best service is our responsibility

Company Contact:

• Posted By: Chengdu Driflex Company Ltd.

• Phone: 13320945387

• Address: No. 77 Tianmu Road, West Hi-Tech Zone, Chengdu, P., Chengdu, China, China

• Email:

• Business Description: Chengdu Driflex Co., Ltd. is a leading manufacturer and supplier of high quality metallic conduit fittings and flexible conduit based in China.

  Driflex main products includes:

  Conduit fitting

  Liquid-tight conduit fittings

  Explosive-proof fittings

  Cable glands

  Non-jacketed metallic flexible conduit

  PVC Jacketed metallic flexible conduit

  Liquid-tight metallic flexible conduit

  Explosive-proof conduit

  Nylon conduit

  As one of major OEM/ODM for flexible conduit and fittings in China, Driflex has been successfully exporting to USA, UK, Australia, Turkey, India etc.

  18 countries for the past years with some world famous brands in the electrical industry.

  At Driflex, we have well-trained and highly experienced engineers and technical staffs and we take pride of our high quality products we make.

  We are keen to establish long last business partnership with all companies or individuals of the same fields worldwide.
