Artifical graphite electrodes is made of high-quality low ash materials, like the petroleum coke, needle coke and coal pitch.

After experiencing calcinations, burdening, kneading, forming, baking and pressure impregnation, it is graphitized in a hign temperature of over 3000℃, And then treated with machining.

this kind of product is widely used for electric arc steel-making, yellow phosphorus, indusreial silicon, other alloys and non-metallic materials of electric atc furnace.

this product is characterized by low resistivity, good electrical conductivity, low ash, even and compact structure, good antioxidation and high mechanical strength

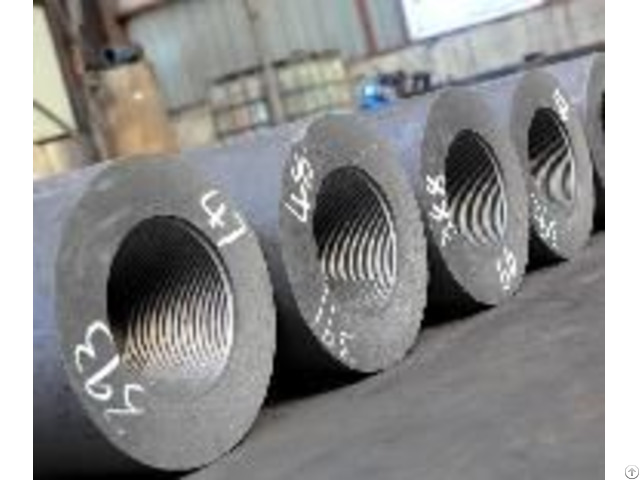

Graphite electrode

Project Nominal diameter /mm 250-300 350-450

Resistivity / μΩ•m ≦ Electrode 9 9 Joint 8 8

Flexural strength / Mpa ≧ Electrode 8 7 Joint 15 15

Elastic modulus / Gpa ≦ Electrode 9.3 9.3 Joint 14 14

Bulk density / g/cm3 ≧ Electrode 1.53 1.53 Joint 1.7 1.7

Thermal expansion coeffi 10-6/℃ ≦ Electrode 2.9 2.9

cient / Joint 2.8 2.8

Ash / % 　 ≦ 　 0.5 0.5 Size and permissble variation of Graphite Electrode

Nominal Actual diameter Nominal length Actual 　

diameter length 　 Maxmum Minmal Black part is the Allow Short feet

　 smallest deviation Inches mm

10 250 256 251 248 1600/1800/2000 ±100 -275

12 300 307 302 299 14 350 357 352 349 16 400 409 403 400 1600/1800/2000/2200 18 450 460 454 451 20 500 511 505 502 1800/2000/2200/2400 22 550 562 556 553 24 600 613 607 604 2000/2200/2400/2700 Graphite Electrode, Carbon Graphite Electrode, UHP Electrode, HP Electrode Wholesaler

Artifical graphite electrodes is made of high-quality low ash materials, like the petroleum coke, needle coke and coal pitch.

Our graphite electrodes is characterized by low resistivity, good electrical Conductivity, low ash, even and compact structure, good antioxidation and high mechanical strength.
