Ze3410 Stand For Laboratory Work Didactic Equipment - China
price: 5000.00 Dollar US$
Description

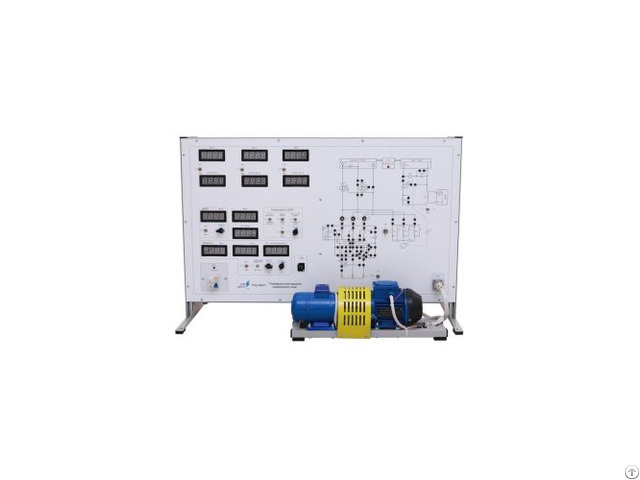

The bench is designed for conducting labs in “Electrical machines”.
Structurally the bench consists of two parts: housing, in which part of electrical equipment, electronic boards, front panel, power module and tabletop of integrated desktop are installed;
machine assembly, which includes DC motor, asynchronous motor with wound rotor, one asynchronous motor with squirrel-cage rotor, as well as an optical speed sensor with the definition of the direction of rotation.
The bench can be supplemented with electrical machinery unit on the basis of electric motors of small (90 W) or large (0.55 kW) power.
The bench housing contains: Frequency converter for generating variable frequency three-phase AC network and voltage of asynchronous motor and three-phase transformers power supply.
The converter is based on a microcontroller MB90F562 (Fujitsu) and power intelligent module PS11033 (Mitsubishi).
The controller is used for calculating input data (specifying voltage and frequency) and output (current, voltage) signals, for data exchange with PC (RS-485), and displaying the measured values on the bench front panel.
The power module includes power circuits of three-phase bridge rectifier, three-phase bridge inverter on IGBT transistors, as well as drivers and protection circuits (short circuit, insufficient supply voltage drivers, improper control signals input).
The frequency converter allows the user to explore the asynchronous motor in all the four quadrants of the mechanical characteristics.
