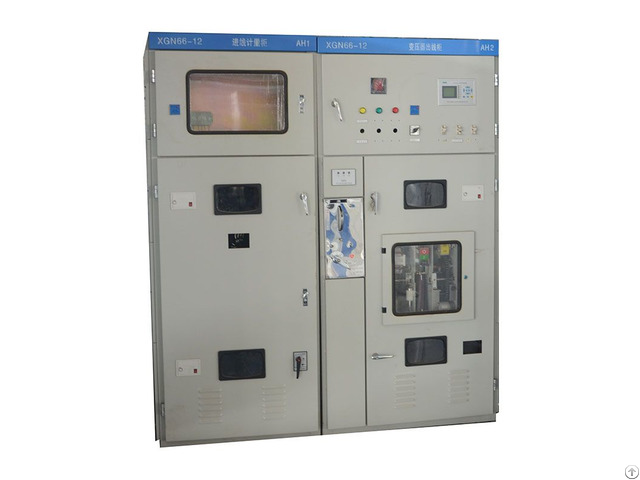

Xgn66 12kv Ac Metal Switch Cabinet - China

XGN66-12 box-type fixed metal-enclosed switchgear (hereinafter referred to as switchgear) for 12kV and below three-phase AC 50Hz system as receiving and distributing power, And can be derived from a single bus with bypass and dual bus structure).

XGN66-12 indoor high-pressure box-type fixed metal-enclosed switchgear for AC 50Hz, rated voltage 12KV, rated current to 2000 high-voltage dual power supply system, as a high-voltage dual power supply system automatically switches, overcurrent, closing Inrush current, short circuit, overvoltage and undervoltage protection.

The product in the Taiwan equipment to achieve high-voltage dual-loop power supply reliable conversion, with small size, light weight, low investment, easy installation and so on.

The product is designed to ensure that the two high-voltage power supply is completely isolated, while the use of sound and reliable mechanical and electrical interlock, with very high security and reliability.

The product is suitable for power supply reliability and security requirements of high dual power users, as a dual power supply system control and protection equipment.

Use of environmental conditions

1, the ambient temperature: upper limit +40 ℃, lower -25 ℃;

2, the altitude does not exceed 1000m;

3, the air relative temperature: daily average of not more than 95%, the monthly average of not more than 90%; saturated vapor pressure: daily average of not more than 2.2 × 10-3Mpa; monthly average of not more than 1.8 × 10-3Mpa

4, seismic intensity does not exceed 8 degrees;

5, there is no fire, explosion hazard, serious contamination, chemical corrosion and severe vibration of the place.

In the use of the environment can not fully meet the above conditions.

Products can also take anti-heat, anti-corrosion and other technical means to adapt to special environments.

Product Features

1 - Products are metal armored fixed design, side-mounted structure, busbar front and rear, the next line, on the outlet, small size, easy to install.

2 - Products from the electric double-bit rotary isolation switch, vacuum circuit breakers, voltage transformers, power transformers and microprocessors as the core of the intelligent controller and other components, simple structure, reliable performance.

3 - The product can automatically detect the main power supply and standby power, the main power supply in the case of power, automatically switch to standby power to ensure continuity of supply.

4 - Products with reliable mechanical and electrical connection shop, in line with the industry · five anti-requirements to ensure safe operation of the product.

5 - Simple manual operation design, can be safely through the manual operation to complete the main power and standby power conversion.

6 - Electric double-position rotary isolation switch supports three-station manual operation, with manual repair station with locking device, in the maintenance state, the main power and standby power supply and disconnect the isolation switch, to prevent product misuse, To ensure equipment and personal safety.

7 - The product main circuit is a straight line layout, the loop resistance is small, the temperature rise is low, the heat dissipation performance is good.

8 - Complete product specifications, with a variety of switchgear with the use of adaptation to various occasions.
