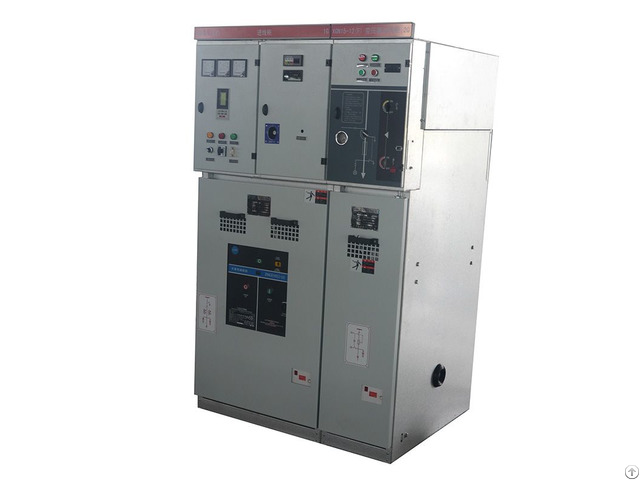

Xgn15 12kv Sulfur Hexafluoride Ring Network Cabinet - China

product description: XGN port-12-type indoor high-voltage AC vacuum switchgear 3.6-12kV, three-phase AC 50Hz, single bus and single bus system of complete sets of distribution devices.

Mainly used for industrial and mining enterprises and power distribution system and the secondary power substation by the power, transmission, reactive power automatic compensation devices and large high-voltage motor starting, the implementation of control and protection.

Monitoring purposes.

Can also be used for high-voltage side of the outdoor box-type substation protection, urban cable distribution with the outdoor high-voltage cable distribution box.

The switch equipment to meet IEC298, GB3906-2006 and other standards.

The switch and the main electrical components for the integration of cross-block, outward movement connection parts using labyrinthine insulation structure, interphase conductive parts for the solid insulation package.

Main parts of the exposed surface of the insulation can be based on user requirements coated semiconductor shielding layer, so that grounding to eliminate static induction.

Therefore, the use of security greatly improved.

The operating mechanism of the high-voltage circuit breaker can be spring energy storage actuator or permanent magnet operating mechanism with a mechanical life of 10, 000 times.

If there is no frequent short-circuit fault according to the user's requirements,, The number of mechanical life can reach 20, 000 times.

Truly a no need to repair the switchgear.

All of its operational data and equipment conditions are realized remote monitoring and monitoring, dynamic data recording equipment in operation, you can unattended automatic recording of operational data, and print the operating file as needed.

Is a superior performance of the power distribution device.

The complete set of equipment factory has been in accordance with the user's first system diagram of the requirements, will be arranged in the order of the cabinet into one, between the bus between the bus and the cabinet has been connected, and fixed in the channel welding base, the user only The complete sets of equipment to be transported to the installation site, in place after the control cable and access to the power cable, you can normally put into operation, without rearrange the assembly work.

The equipment is 600 mm away from the wall for easy operator maintenance and inspection.
