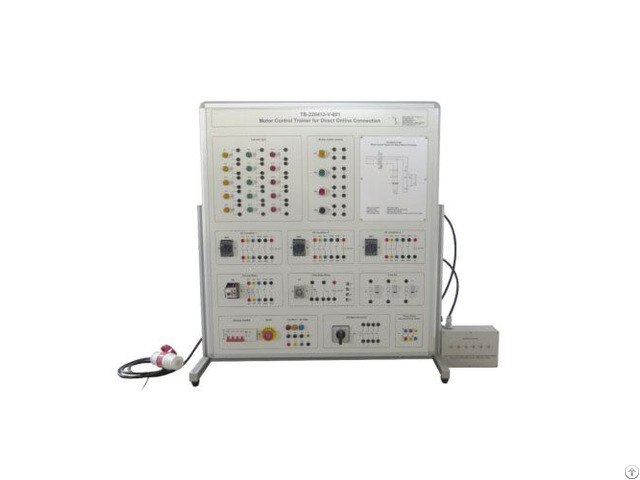

Tb 220413 V 001 Motor Control Trainer For Direct Online Connection - China

1 - Equipment introduction

This practical training device industrial control components, through the relevant experiments, can be familiar with the operation characteristics of AC motor, master its control principle and control mode, the internal setting of a number of fault training students troubleshooting ability, training students the corresponding knowledge and skills, suitable for higher vocational schools, higher vocational schools, secondary vocational schools and technical schools related professional teaching and skills training assessment.

2 - Technical parameters

(1) Input power supply: three-phase four-wire AC220V±10% 60HZ

(2) Weight: < 50KG

(3) Working conditions: ambient temperature -10℃ ~ +40℃ relative humidity < 85% (25℃)

(4) Size: 950*470*1010mm

3 - List of components and detailed introduction

Indicator module

Push button module

Ac contactor module

Thermal relay module

Time relay module

Fuse fuse module

Power module

Load switch module

Ac motor module

Alternating current machine

Fault setting switch

4 - List of experiments

Experiment 1 - Motor point and self - locking experiment

Experiment 2 AC contactor fault simulation

Experiment three thermal relay overload fault simulation

Experiment 4 Time relay fault simulation

Experiment 5 Fuse failure simulation
