Sub Section Of The Stick - China

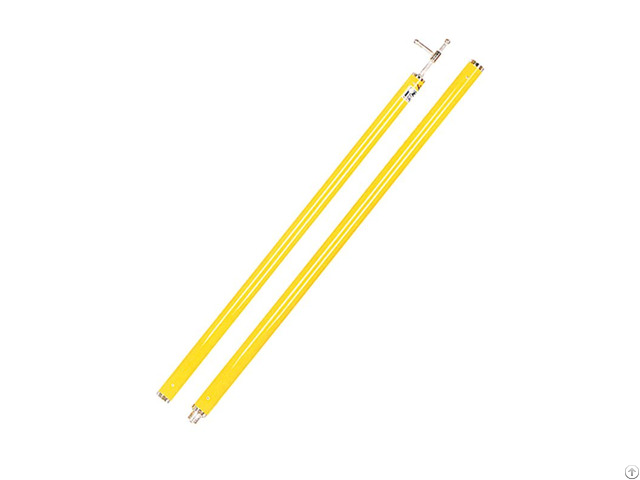

Pull brake rod, also known as insulated operating rod, insulated operating rod, insulated rod, high pressure operating rod, Main use: for high and low voltage switch, pull the gate and for live line clamp.

Pull brake lever (also known as grams of rods) production process:

The use of high-quality glass fiber cloth, epoxy resin and 306 resin phthalic anhydride, glass fiber reinforced plastic fiber cloth and curing agent made of several major insulation materials, after the first high temperature and then the initial shape in the abrasive, and then remove the mold, after the second High temperature grinding, a rough grinding, two fine grinding, and then made in the paint made of other fiberglass products, beautiful appearance, light structure, easy operation, with excellent mechanical and electrical properties, suitable for use under high pressure conditions, good insulation performance Safety.

Pull the rod (make grams of rods) Category: high pressure pull lever, rain-proof rods, telescopic pull lever, then pull-type pull lever, gun grounding rod, high-pressure sound and light nuclear phase instrument.

Pull the lever (make grams of bar) Voltage rating: 10KV, 35KV, 110KV, 220KV, 500KV.

Pull the bar (make grams of bar) Specifications: 3 3 meters, 3 4 meters, 3 5 meters, 3 6 meters, 4 4 meters, 4 5 meters, 5 5 meters, other specifications according to User requirements are customized.

Note: In order to ensure the safety of the person and equipment, the brake bar should be in the air circulation environment dry place dedicated; use of the operating rod, should comply with the relevant provisions of the electrical safety work procedures.

For more information on the brake lever, please contact the documentation provider and we will provide you with satisfactory service.
