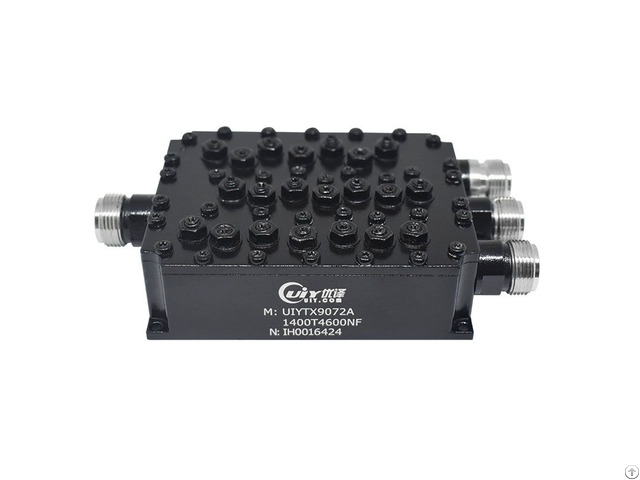

Rf Triplexer With 3 Channels Signal Transmitter 1400 To 4600mhz N Female - China
price: 255.00 Dollar US$
Model Number: UIYTX9072A1400T460 0NF
Frequency Range: CH1: 1400~1600MHz CH2: 2900~3100MHz CH3: 4400~4600MHz
Insertion loss: 0.5dB
Isolation: 30dB
VSWR: 1.22
Power: 100W
Connector Type: N-F
Temperature: -30~+70℃
Dimension: 90*72*33mm
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: June 21, 2022
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
