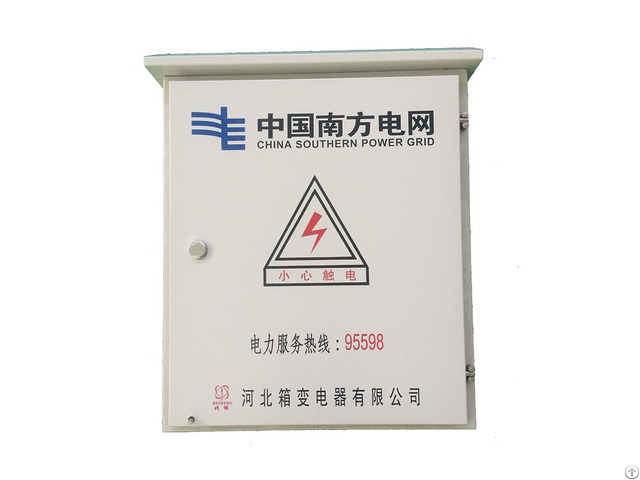

Low Voltage Metering Box Xdd Metal - China
price: contact company for price
product description:
XDD energy metering box for 0.4KV voltage system for energy metering equipment, including the combination of the transformer (collecting three-phase current and voltage signals), box, power meter, current accuracy of 0.2S voltage accuracy level of 0.2 level.
Box material for cold plate spray and stainless steel.
Widely used in a variety of low-voltage electrical energy measurement sites.
Technical Parameters:
Rated operating voltage: AC380V / 220V
Rated insulation voltage: AC5000V
Rated frequency: 50HZ or 60HZ;
Electrical Clearance: ≥5.5mm
Creepage distance: ≥8mm
Protection class: IP30 Product Features
The appearance of metal materials beautiful, exquisite workmanship, the use of stainless steel wire drawing material and cold sheet metal spray, while aesthetically significant increase in the life of the box, outdoor installation, while the use of "herringbone" rain top, so that the box Rainproof function is more effective, increased in the side of the ventilation holes, while the rain has reached the cooling effect, serve multiple purposes, nice, long life, good quality.
Company Contact:
- Posted By: 7.Hebei Box-type Transformer Co., Ltd.
- Phone: 0086 317 5080000
- Address: Appliance Electrical Materials Industrial Park,Suning, CangZhou , Hebei , China
- Email:
Published date: March 6, 2017
- Business Description: Manufacture and sale : high and low voltage electrical appliances, switches and complete sets of equipment, lightning arrester, line fittings, Safety tools, Installation and maintenance of copper wire electromagnetic insulator, new energy operation and development, operational management.
