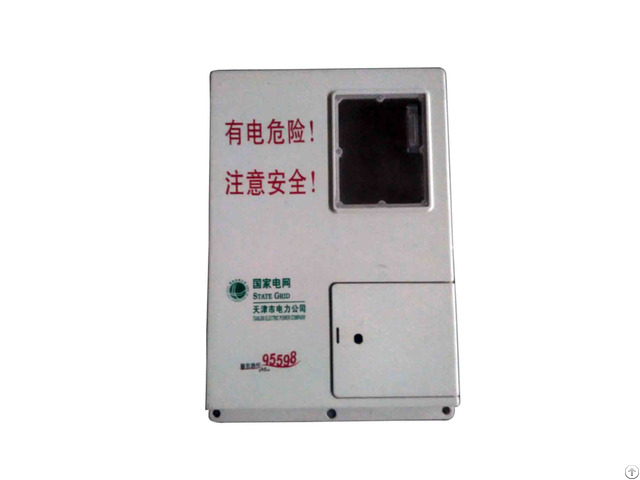

Low Voltage Metering Box Fxdd Non Metallic - China
price: contact company for price
Product Overview:
XDD energy metering box for 0.4KV voltage system for energy metering equipment, including the combination of the transformer (collecting three-phase current and voltage signals), box, power meter, current accuracy of 0.2S voltage accuracy level of 0.2 level.
Cabinet material for the SMC and PC two.
Widely used in a variety of low-voltage electrical energy measurement sites.
Technical Parameters:
Rated operating voltage: AC380V / 220V
Rated insulation voltage: AC5000V
Rated frequency: 50HZ or 60HZ;
Electrical Clearance: ≥5.5mm
Creepage distance: ≥8mm
Protection class: IP30 Product Features
In non-metallic materials, fiber reinforced polyester material has excellent anti-aging properties.
The results showed that the maximum aging depth was less than 50μm in 20 years.
Most of the cabinet minimum thickness of 5mm, less than 1% of the thickness of the box, so the mechanical properties of the box has no significant impact.
So that the company has adopted a special UV-resistant surface treatment process, and more to strengthen its anti-aging properties.
