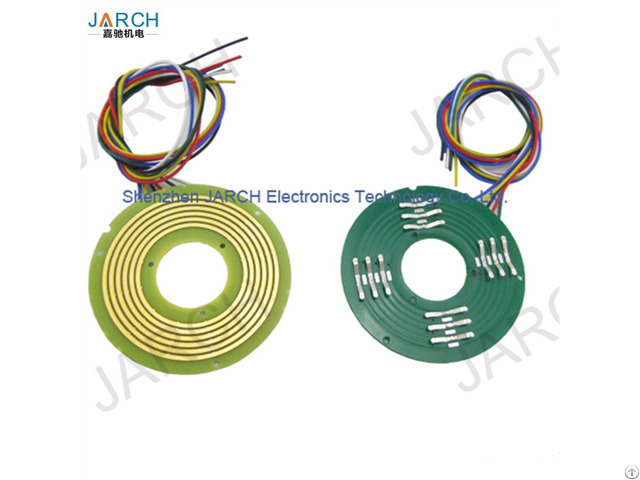

High Speed 360 Rotating Electric Pcb Pancake Slip Ring Ultra Thin 6mm Pancace Slipring 12 Circuits - China
price: 50.00 Dollar US$
Features ultra-thin flat slip ring
Inner diameter: 28mm
gold alloy brush, gold plated rings
More thickness available
OEM is welcome
Quick Details High speed 360 Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits Operating Speed 0-300 rpm
Number of Circuits 2 ~ 24
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°Cto +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin
Company Contact:
- Phone: +8613929708571
- Address: Floor 2, Unit C, Guangfa Industrial Park, Dananhai, Luotian Community, Songgang Street, Baoan Dist., Shenzhen , China
- Email:
Published date: March 18, 2019
- Business Description: JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China.
Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
