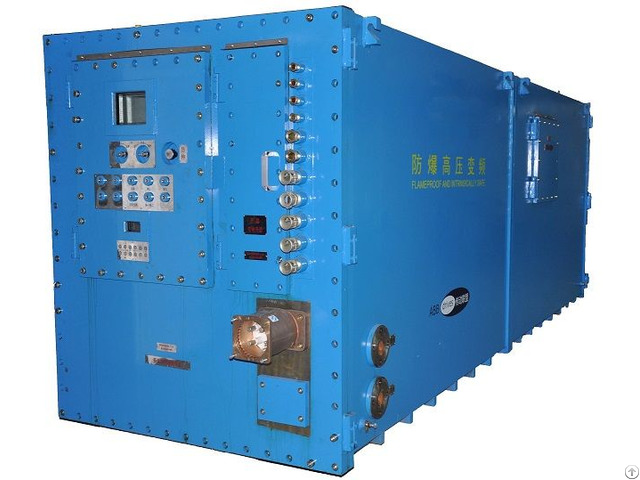

Explosion-proof variable frequency drive MINE USE FLAMEPROOF AND INTERINSICALLY SAFE MEDIUM VOLATGE VFD BPJV-2200/3.3 BPJV-1600/3.3 PJV-1250/3.3 BPJV-855/3.3 Key product features

1 - High reliability and high efficiency based on the IGCT(IGBT) power semiconductors

2 - Exceptionally high torque and speed performance based on DTC vector control platform

3 - Pure sinusoidal voltage and current output based on ABB special output sine filter 4 - No special demand for motors, easy to drive special or general motors

5 - Long cable distance between VFD and motor is permitted for 5000m

6 - Rectification technology based on 12-pulse conforms to GB14549-1993, IEEE519/1992 and UKG5/3

7 - Total power factor: >0.95 over speed regulation range

8 - Full output torque at low speed

9 - Power loss ride through

10 - Normal running, regular examine and repairing mode can be selected to meet the demand of production

11 - Local, head of the scraper conveyor and remote control can be selected

12 - Master-follower dynamic tracing control, fast dynamic mutual co-ordination and load share

13 - Standard one to one running mode; One to two running mode is optional.

14 - World leading VFD water-cooling technology

15 - Perfect protection function: such as motor stall, motor phase loss, supply phase loss, over current, short circuit, overvoltage, under voltage, earth leakage lockout, earth leakage, communication fault 16 - Easy to realize process interlock control 17 - Parameter LCD display and setting Main Application

1 - Soft start and speed control of heavy-duty scraper conveyor, automatic energy saving running mode

2 - Soft start and speed control of heavy-duty belt conveyor, automatic energy saving running mode Rated Input Voltage: 6KV/10KV(-15%~+10 % at full load) Number of phase/frequency: 3/50Hz±5 % Power Factor: >0.95 VFD Output Power: PJV-2200/3.3(2200KW ) BPJV-1600/3.3(1600KW) BPJV-1250/3.3(1250KW) BPJV-855/3.3(855KW)

Voltage: Sine wave, 0V~3.3KV Over Load: Typical 150%/Min (120%-300% Optional )

Frequency: 0~50Hz(0~66H z) Torque Response: <10ms Control

Input/output interfaces: 16 DI/16DO Communication: Ethernet


Signa Isolation: Photoelectric/I solated gate Signal Transmission: Fiber-optica l Frequency Accuracy: 0.1% Efficiency: >97% Environment

Vibration: 10~150Hz, lower of 0.5g Storage: -20 degree~+70 degree Degree of protection: IP54, Exdl Dimensions/ Weight: 4316mm×1440mm×16 00mm less than 10T
