Combined Slip Ring For Packing Machine - China

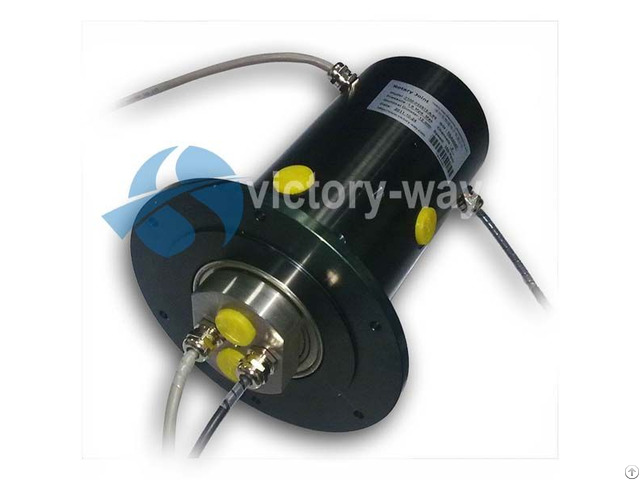

HS-FA2X1/2-S24-SF hybrid slip ring is designed to setup at the end of shaft or side of the machine, fit to pass fluid +signal or low current power.

It is set in the body of rotary joint, the wire of rotor will lead out from the center.

Stator side has flanges for setup.

(More product information welcome to visit slipring.

net.

) Feature:

1) High quality bearing on both sides of shaft for smoothly operating;

2) No need to maintain;

3) High quality sealing materials for long life circle;

4) Special shaft provides an excellent wear resistance;

5) Al, Bass, stainless steel body for option;

6) Specially designed leak detection holes;

7) Stator side has flanges for setup.

Technical spec:

Speed

200Rpm

Operate temperature

-30～90℃

protect degree

IP65

Housing

Al alloy Part A: (Electornic Slip Rings)

Channels 12 rings(for signal) Operation Voltage 0~240VAC/DC Current 2A/Ring Contact material Precious Metal Electric Noise Max.

40m Ω Dielectric strength 500VAC@50Hz, 60s Insulation resistance 500MΩ @600VDC Part B: (Rotary Joint)

Channels

2 Ways

Pressure

1.6Mpa Max

Media

compressed air/ vacuum Our products are widely used in: Security, Factory Automation, Electric Instrumentation, Medical, Aerospace, Marine, Civil and Military Fields.

Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Detector, Rotary Tables, Robots, Strander, Webcam, Automatic Revolving Door, Exhibit / Display Equipment, Food Manufacturing Machine, Packaging Machine, Amusement Equipment, Irrigation Machine, Heated Rollers etc.

More product information welcome to visit our website.

Company Contact:

• Posted By: Victory-way Electronic(Shenzhen) Co., Ltd

• Phone: +86-755-2780 6979

• Address: BLD.D, Hejing Industrial Park, Heping Fuyong, Baoan District Shenzhen,China, Shenzhen , Guangdong , China

• Email:

• Business Description: Victory-way Electronic(Shenzhen) Co., Ltd. is a high-technology company which focuses on R&D and production of industrial electrical slip ring, created by senior engineers with many years of conductive slip ring application and development experience.

  So we can learn the demands of customers better and provide the best solution in the shortest time to help customers shorten development time.

  We design, develop and produce fiber composite (FORJ), electrical liquid mixture, high-frequency combinations, explosion-proof slip rings, waveguide combination of slip rings, etc.

  and we can provide the electrical contact devices in varieties of working conditions, from the underwater environment to the high altitudes, from the alpine zone to the high temperature environment, and even for the explosive condition.

  At present, our products are applied in the fields of security, industrial automation, military, environmental protection and so on.

  Excellent performance and reliable quality make our conductive slip ring exported to developed industrial countries, such as Japan, USA, Europe etc.

  Our products are very popular with customers and we are honored to be privileged the only supplier of slip ring for some customers of the high reliability requirement.

  We will continue to work hard to provide high quality conductive slip ring and the best solutions to customers.
