Armored Removable Ac Metal Enclosed Switchgear Kyn28 A 12kv - China

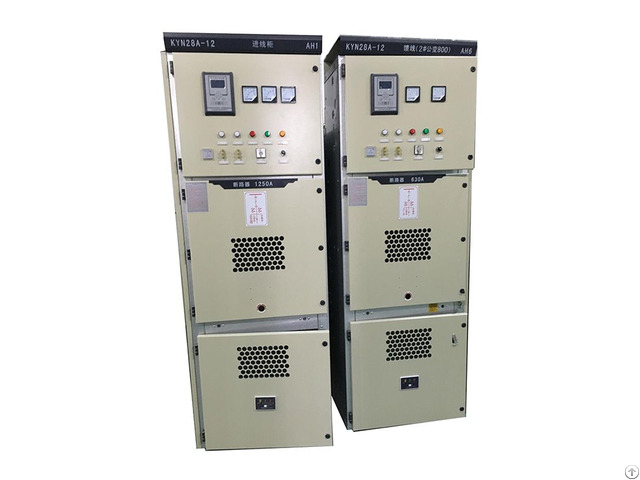

High Voltage Switch Cabinet KYN28 (A) -12 product description:

KYN28-12 (Z) (GZS1) type Kai out of the exchange of metal-enclosed switchgear rated voltage 3.6.12kV three-phase AC 50Hz indoor complete power distribution unit.

Its shell is completely by the complex aluminum-zinc steel sheet processed by the machine after multiple bending forming bolts, its high book L-strength, effectively guarantee the production conditions: neat and beautiful, the door with spray Coating, with a strong impact resistance and corrosion resistance.

The product enclosure is IP4X rated.

The main switch can be configured ABB VD4 vacuum circuit breakers, C3 series of fixed load switch.

(Such as VS1, VH1, VK, ZN28), to replace foreign similar products, the entire cabinet by the instrument room, bus room, handcart room and cable components.

Wood switchgear to meet the GB3906, DL404, IEC-298 and other standards, and has to prevent misuse of circuit breakers, anti-load than the push-pull car to prevent the closing of live-off switch.

Use of environmental conditions

1 - Ambient air temperature upper limit: +40 ℃, lower limit: -10 ℃.

2 - Altitude: not more than 1000m.

3 - Relative ambient temperature: daily average of not more than 95%, the monthly average of not more than 90%.

4 - Earthquake: The intensity does not exceed 8 degrees.

5 - The surrounding air is not corrosive or flammable gases, water vapor and other obvious pollution.

6 - No serious pollution and frequent severe vibration, severe conditions designed to meet the stringent requirements of a class.

1 - Product shell is completely covered by the aluminum-zinc-plated steel sheet processed by the machine after multiple bending forming bolts, with high mechanical strength, effectively ensuring the neat and beautiful products, the door with spray coating, Has a strong impact resistance and corrosion resistance.

The product enclosure is IP4X rated.

2 - The main switch of this product can be configured with VD4 vacuum circuit breaker and C3 series fixed load switch produced by ABB, and can also be equipped with a variety of domestic series vacuum circuit breakers (such as VS1, VH1, VK, ZN28) Similar foreign products.

3 - No matter what kind of circuit breaker is chosen, its bare conductor air insulation distance can ensure greater than 125mm, composite insulation is greater than 60mm.

The circuit breakers have long life, high parameters, less maintenance, small size of the unique advantages
