  • The 4 In 1 Mux Scrambling Qam Modulator - China

    price: 900.00 Dollar US$

    Outline

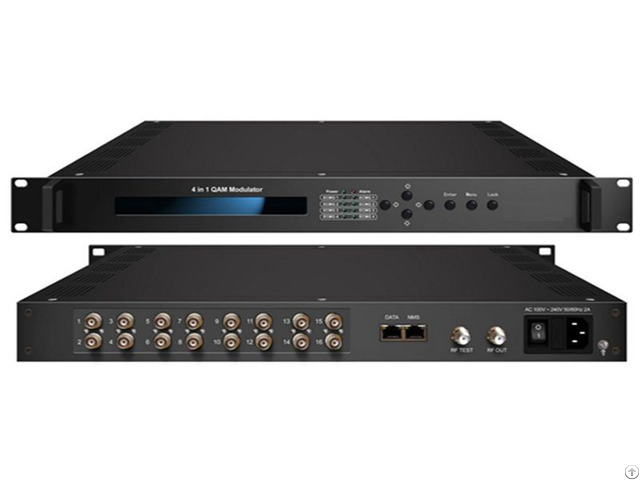

    STM-2400 4 in 1 mux-scrambling QAM Modulator is a high performance and cost-effective ASI mux-scrambling QAM modulating device latest designed by Sighton Company.

    It provides 16 ASI input interface.

    After 4 channels multiplexing, scrambling and QAM modulating process, then it gives 4 RF output (4 adjacent frequencies by 1 RF port) and gigabit IP output.

    The device is characterized with high integrated level, high performance and low cost.

    This is very adapting to newly generation CATV broadcasting system.

    Key Features *Support 16 ASI input, 4 ASI input, 8 DVB-S2 tuner input optional

    * Fully support DVB-C (EN300 429) and ITU-T J.

    83A/B/C

    *Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197

    *Support 4 channels multiplexing, 4 channels scrambling and 4 channels QAM modulating

    *Support gigabit IP output

    *Simultaneously support 4 simulcrypt CA

    *Support accurate PCR adjusting

    *Support PSI/SI editing and inserting

    *Excellent RF output performance index, MER≥40db

    *Support LCD display and keyboard

    *Support SNMP management Specifications Input 16 channels ASI input STM-2400-16 4 channels ASI input STM-2400-4 8 DVB-S2 tuner input STM-2400-8

    Multiplexing Input Channel 16 channels ASI input STM-2400-16 4 channels ASI input STM-2400-4 8 DVB-S2 tuner input STM-2400-8 Output Channel 4 RF output, gigabit IP output Maximum PID Remapping 256 per input channel Function PID remapping(automatically or manually) accurate PCR adjusting Generate PSI/SI table Automatically

    Scrambling Maximum simulcrypt CA 4 Standard ETSI 101 197, ETSI 103 197 Connection Local/remote connection

    Modulation QAM Channel 4 Standard EN300 429/ITU-T J.

    83A/B/C Symbol Rate 2.5Msps~4.66Msps, 5.0Msps~8.0Msps, 1ksps stepping Constellation 16, 32, 64, 128, 256QAM FEC RS(204, 188)

    RF Output Connector F Type, 75Ω impedance RF Range 30~960MHz, 1kHz stepping Output Attenuation -16dBm~-0dBm(per QAM carrier), 0.5dB Stepping MER ≥40db ACLR(Adjacent channel leakage ratio) -55dBC

    System Support LCD display, keyboard operation, and NMS/SNMP operation.

    English and Chinese operation interface conversion Support Software Upgrading through Ethernet

    General Dimension(W*D*H) 482mm×455mm×44.5mm Weight 3.7kg Temperature 0~45℃(Operation) ; -20~80℃(Storage) Power AC100V±1050/60HzorAC 220V±10%, 50/60HZ Consumption 25W


    Company Contact:


    • Phone: +86 028 87790251

    • Address: No.12 Building, Shuanglin Road,Chenghua District,ChengduCity, Sichuan Province, China., chengdu , sichuan , China

    • Email: Email


    Published date: December 25, 2018

    • Business Description: Chengdu Sighton Technology Co., LTD. is ten years manufacturer, specialized in digital TV head-end system.

      The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of CATV products.

      Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry.

      Sighton's products including: optical transmitter, optical receiver and different types of amplifier etc network equipment, CATV addressable billing system series products, analog TV scramble system products.

      QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and full hd encoders, TS digital splitter and adaptor.

      For the system: .

      What we can offer is total solution of DVB-C/S/T from headend to user end with the way of cable, MMDS, DTH.

      And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

      As a leader of CATV industry in China, Sighton focuses on the digital TV products and provides a wide range of new technologies as well as competitive products suitable for both domestic and overseas markets.

      Our team will provide the best products and service to customers home and abroad.





      Sighton Technology Limited is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of CATV products.

      Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry.

      Sighton's products including: Encoder, Encoder Modulator, Satellite Recevier, Gateway , IP Transcoder.

      As a leader of CATV industry in China, Sighton focuses on the digital TV products and provides a wide range of new technologies as well as competitive products suitable for both domestic and overseas markets.

      Our team will provide the best products and service to customers home and abroad.
