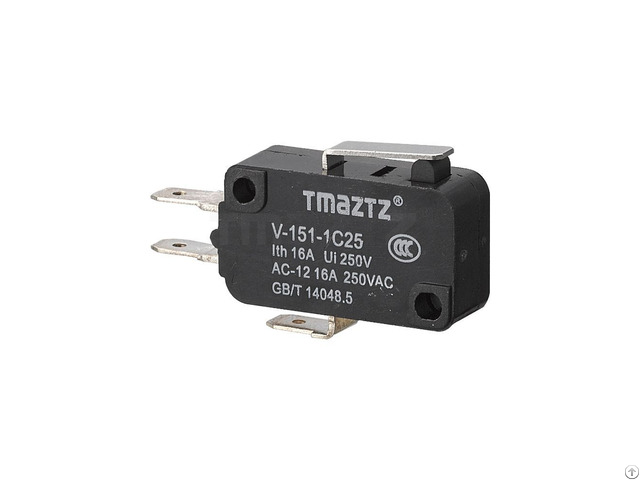

V-15-1C25 basic plunger model Micro Switch

■ High accuracy of action position;

■ Good shock resistance, maximum 1000m/s2;

■ High-strength shell, when mounting, the plastic shell can withstand torsional moment of 6kgf.

cm without break.

Ratings

Item nominal voltage Noninductive Load (A) Inductive Load (A) Inrush Current(A)

Spec.

Resistance Load Lamp Load Inductive Load Motor Load NC NO NC NO NC NO NC NO NC NO

16A 250VAC 16 2 10 3 40max.

8VDC 16 4 10 6 30VDC 10 4 10 4 125VDC 0.6 0.1 0.6 0.1 250VDC 0.3 0.05 0.3 0.05 Characteristics

Operation speed 0.1mm~1m/s( Button type)

Operating frequency Electrical：20 operations/min Insulation resistance 100mΩ above(at 500VDC)

Contact resistance 15mΩmax.

(initial value)

Withstand voltage Non-continuous terminals 1, 000VAC, 50/60Hz Continue1min current-carrying and non-current-carrying metal parts, Between terminal and earthing 2, 000VAC, 50/60Hz Continue1min

Vibration Misoperation 10 to 55Hz, 1.5mm pairs swing

Shock Misoperation Max 300m/S2(about 100G)

Temperature -10~+65℃(no ice)

Humidity Under 85%RH(+5~+35℃)

Weight Approx 6.2g (button type)

Electrical life Above300000 Operating Characteristics

Operating Characteristics Model V-15 V-151 V-152 V-153 V-154 V-155 V-156

Operating force OF (Max) 1.96N 1.96N 1.23N 0.69N 1.23N 2.35N 1.23N

Release force RF (Min) 0.49N 0.49N 0.14N 0.06N 0.14N 0.49N 0.14N

Pre-travel PT (Max) 1.2mm 1.6mm 4.0mm 9.0mm 4.0mm 1.6mm 4.0mm

Over-travel OT (Min) 1.0mm 0.8mm 1.6mm 2.0mm 1.6mm 0.8mm 1.6mm

Movement differential MD (Max) 0.4mm 0.6mm 1.5mm 2.8mm 1.5mm 0.6mm 1.5mm

Operational position OP 14.7±0.4mm 15.2±0.5mm 15.2±1.2mm 15.2+2.6mm

15.2-3.2mm 18.7±1.2mm 20.7±0.6mm 20.7±1.2mm click to visit our website
