Us Standard Smart Wifi Button Wall Switch - China

Model Number: SW-118

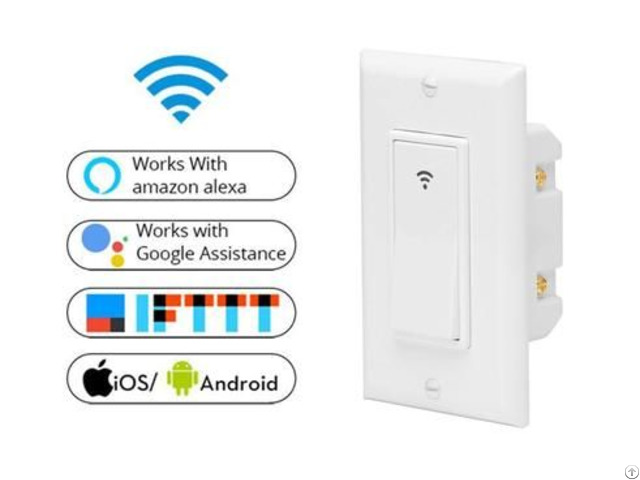

US Standard Smart WiFi Button Wall Switch

SW-118-1 (1 Gang Wall Switch)

SW-118-2 (2 Gang Wall Switch)

SW-118-3 (3 Gang Wall Switch) This US standard button switch can be connected to network via wireless WIFI, you can control the switch remotely on your smart mobile and see the status.

All the electrical devices such as lamps and ceiling light can be controlled once they are connected to the button switch.

The button switch also has function of timer and schedule.

It works with Amazon Alexa and Google Home for voice control, and also can be triggered to switch via IFTTT.

Besides, the switch has LED backlight.

The LED port can precisely read the requirement of power and offer perfect power supply.

The side angle of the sheetmetal can be disassembled, so 2 Gang switch box (SW-118-2) and 3 Gang switch box (SW-118-3) can be seamlessly connected together, which fully confirms to the size of your home switch box.

Specifications:

Cover Materials: Fire retardant ABS, Aluminum alloy

Cover Surface Color: White

Button Process: Two-color rocker button

Contact Copper: Brass/Nickel/Thickness≥ 0.6mm

Input Voltage: AC100～240V, 50/60Hz

Max.

Load Current: Resistive, Max.

10A

WIFI Standard: 2.4GHz 802.11 b/g/n

Security Protocol: WAP / WAP2

Encryption Type: WEP / TKIP / AES

Indicator: Blue LED WIFI Signal Lighting, Green LED Lighting for standby /switch off, Red LED Lighting for switch on.

Working Consumption: < 1.2W

Standby Consumption: < 0.6W

Product Size: 118*76*46mm

Color Box Size: 135*90*55mm, G.W. 160g

Carton Size: 40.5*28.5*49cm, 80pcs/CTN, G.W. 14kg
