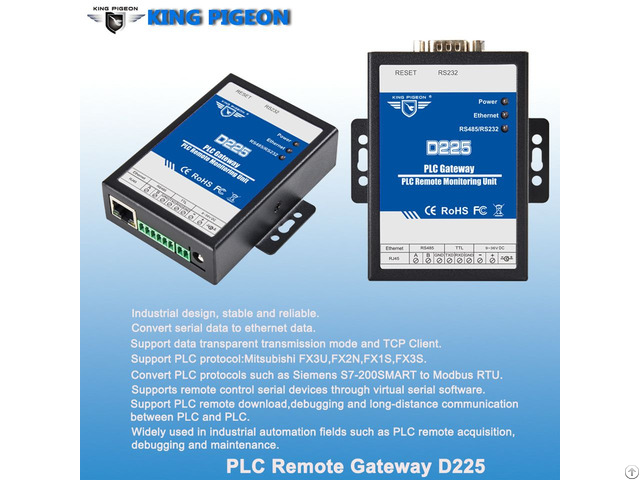

D225 Plc Protocol Converter Iot Gateway - China

1 - Built-in industrial grade ARM CortexTM core, high performance, low power consumption, stable and reliable.

2 - Converting the data protocol of Mitsubishi PLC into Modbus

TCP protocol, then connect to cloud.

Support 1 channel RS-232, 1 channel RS-485 and 1

channel TTL.

3 - Support 1 channel RJ45 Ethernet port

4 - Support RESET button to restore factory function (long press for 3 seconds to recover) to prevent parameter setting error.

5 - Using metal shell material, protection grade IP30, metal shell and system safety isolation, especially suitable for industrial control applications.

6 - Using configuration software to set device parameters, support WIN XP, WIN 7, WIN 8 and WIN 10, friendly interface.

7 - Support static IP address or DHCP to obtain IP address automatically, and query the devices in the network through UDP broadcast protocol.

8 - Support local HMI touch screen and remote simultaneous access to PLC for data acquisition and monitoring.

9 - Support server domain name resolution.

Support firmware upgrade through TTL, firmware update is more convenient.
