Wound Rotor Slip Ring Motor

Product Description

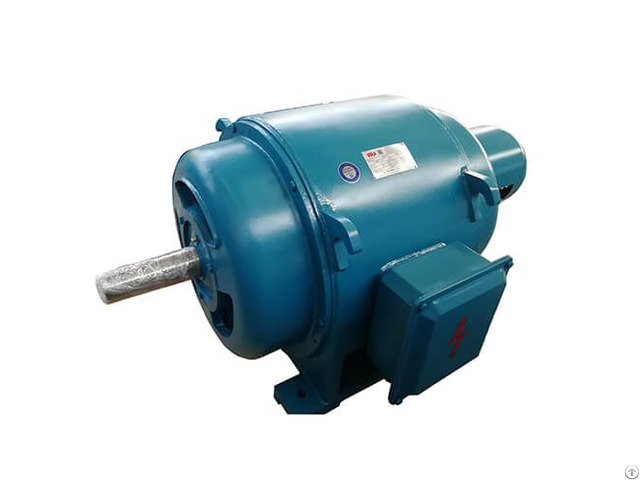

The JR series motor is a protective winding type rotor three-phase asynchronous motor with cooling method IC01 and continuous working system (S1).

This series of motors can provide a large starting torque at a small starting current and can adjust the speed within a certain range.

The JR winding slip ring motor casing is a cast iron casing or a steel plate welded casing with high structural strength and good mechanical properties.

The motor shaft extension end and the non-bearing end have an inlet and outlet air outlet, and the motor slip ring is located at the non-bearing end.

The series of motors have simple structure, convenient installation, convenient maintenance, large starting torque and safe and reliable operation.

JR winding slip ring motors can drive a variety of different machines, such as fans, compressors, pumps, crushers, ball mills, winches, hoists, transport machinery and other equipment, as well as mines, machinery, power plants and Used as prime mover in various industrial and mining enterprises.

The JR series motor is a wound rotor three-phase asynchronous motor.

This series of motors meets the technical standard conditions.

It can drive a variety of different machines, such as fans, compressors, pumps, crushers, ball mills, cutting machines, transport machinery and other equipment.

It is used as a prime mover in the machinery industry, power plants and various industrial and mining enterprises.

The rating of the JR winding slip ring motor is based on the continuous working system (S1).

The frequency is 50HZ, the rated voltage is 220V/380V, 380V, 415V, 3000V, 6000V, which can be designed to 3300V/10000V according to the needs of users.

The protection of this series of motors is IP23; the cooling method is IC01; the structure and installation method of the motor is generally IMB3, and it can also be designed as vertical installation according to customer requirements.

The ratio of the maximum torque to the rated torque of the JR winding slip ring motor at rated voltage is not less than 1.8.

The JR winding slip ring motor must be connected to the starting varistor in the rotor circuit at the start.

It is not permissible to short-circuit the rotor windings directly.

High Quality Slip Ring Motor Supplier: ZCL Electric Motor Technology Co., Ltd.

Product Parameters

Motor power range: 80KW-850KW

Rated voltage: 380V/415V/660V/690V/3000V /33000V/6000V/10000V

Number of poles: 6/8/10/12

Rated frequency: 50Hz/60Hz

Protection level: IP23

Cooling method: IC01

Working system: S1

Insulation class: B

Wiring method: △

Ambient temperature: ≥ -15 ° C and ≤ 40 ° C

The JR winding slip ring motor is suitable for altitudes up to 1000 m and ambient air temperature is 0-40 degrees.

The protective motor should be installed in a room with clean air, no dust, steam, acid, alkali and other corrosive gases.

It is not allowed to be used in an environment containing explosive gas or dust.

Feature of Product

The JR winding slip ring motor casing is a cast iron casing or a steel plate welded casing with high structural strength and good mechanical properties.

The motor shaft extension end and the non-bearing end have an inlet and outlet air outlet, and the motor slip ring is located at the non-bearing end.

The series of motors have simple structure, convenient installation, convenient maintenance, large starting torque and safe and reliable operation.
