Wantai Stepper Motor 36byghm218 - China
price: 20.00 Dollar US$

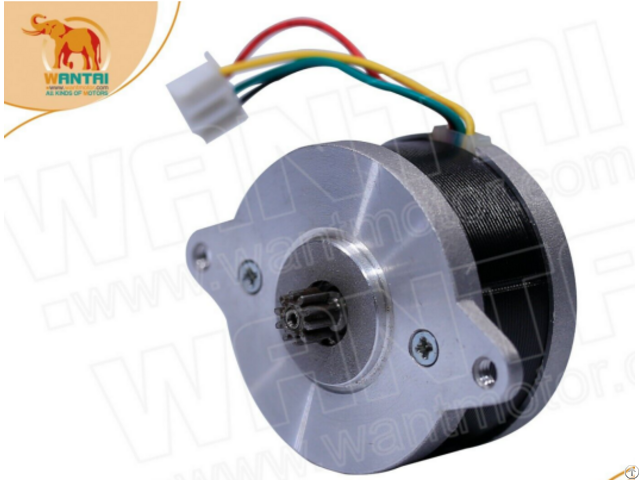

Wantai Stepper Motor 36BYGHM218, 100Kg.
cm, 1.88A, cnc engraver, medical equipment
Part No: 36BYGHM218Single Shaft
Frame Size: NEMA15
Step Angle: 0.9 degree
Voltage: 3.0VDC
Current: 1.88A/phase
Resistance: 1.6Ohm/phase
Inductance: 1.5mH/phase
Holding torque: 100Kg-cm
Rotor inertia: 6g-cm2
Detent torque: 5kg-cm
Number of wire leads: 4
Weight: 0.095KG
Length: 19mm
Front shaft diameter: 5mm
Front shaft length: 15mm round shaft
This model is for Single shaft, with 5mm motor shaft, 15mm front shaft length, round shaft! More Order Quantites, more discount
Company Contact:
- Posted By: JIANGSU WANTAI MOTOR CO.,LTD
- Phone: 13815007798
- Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China
- Email:
- Website: https://www.wantmotor.com
Published date: April 9, 2023
- Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.
Always adhere to the people-oriented, mature production technology, complete testing equipment.
