    • Wantai Stepper Motor 36byghm103 - China

    price: 20.00 Dollar US$

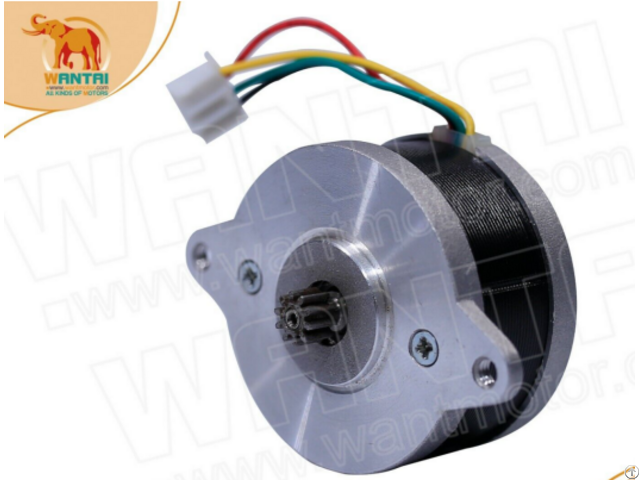

    Wantai Stepper Motor 36byghm103

    Products Photos Catalog Wantai Stepper Motor Photos Catalog

    Wantai Stepper Motor 36BYGHM103, 36Kg.

    cm, 0.3A, cnc engraver, medical equipment

    Part No: 36BYGHM103Single Shaft

    Frame Size: NEMA15

    Step Angle: 0.9 degree

    Voltage: 5VDC

    Current: 0.3A/phase

    Resistance: 16.8Ohm/phase

    Inductance: 8.5mH/phase

    Holding torque: 36Kg-cm

    Rotor inertia: 4g-cm2

    Detent torque: 3kg-cm

    Number of wire leads: 4

    Weight: 0.055KG

    Length: 15mm

    Front shaft diameter: 5mm

    Front shaft length: 15mm round shaft

    This model is for Single shaft, with 5mm motor shaft, 15mm front shaft length, round shaft! More Order Quantites, more discount!


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: April 6, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
