Wantai Stepper Motor 35byg303 80kg Cm 0 54a Cnc Engraver Medical Equipment - China
price: 20.00 Dollar US$

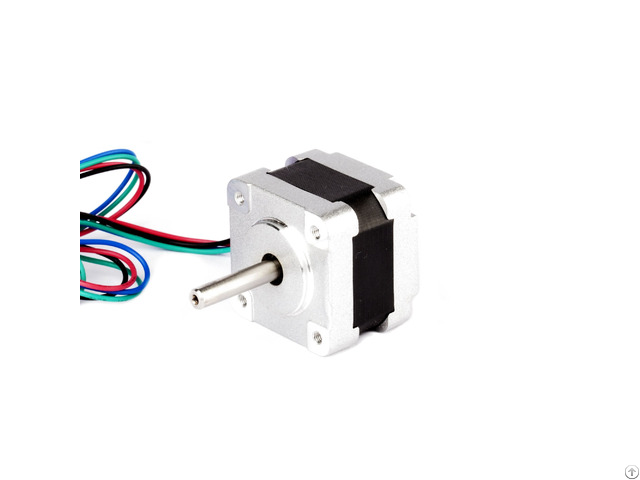

Wantai Stepper Motor 35BYG303 cnc engraver, medical equipment
Part No: 35BYG303Single Shaft
Frame Size: NEMA14
Step Angle: 1.8 degree
Voltage: 7VDC
Current: 0.54A/phase
Resistance: 13Ohm/phase
Inductance: 9.5mH/phase
Holding torque: 80Kg-cm
Rotor inertia: 11g-cm2
Detent torque: 8kg-cm
Number of wire leads: 4
Weight: 0.14KG
Length: 28mm
Front shaft diameter: 5mm
Front shaft length: 24mm round shaft
This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!
Company Contact:
- Posted By: JIANGSU WANTAI MOTOR CO.,LTD
- Phone: 13815007798
- Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China
- Email:
- Website: https://www.wantmotor.com
Published date: March 26, 2023
- Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.
Always adhere to the people-oriented, mature production technology, complete testing equipment.
