Wantai Stepper Motor 35byg207 70kg Cm 0 75a Cnc Engraver Medical Equipment - China
price: 20.00 Dollar US$

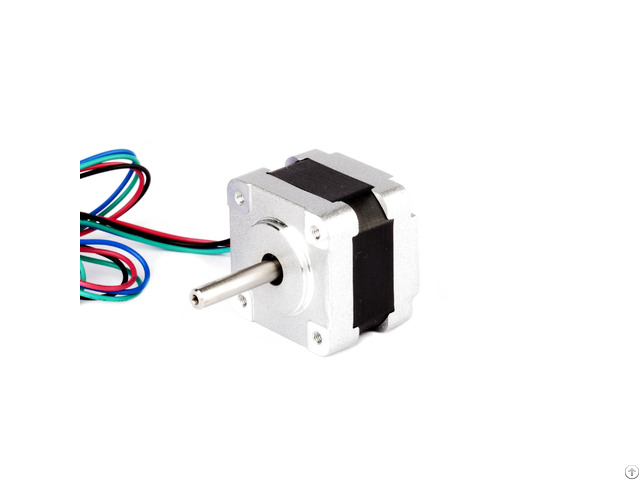

Wantai Stepper Motor 35BYG207, 70Kg.
cm, 0.75A, cnc engraver, medical equipment
Part No: 35BYG207Single Shaft
Frame Size: NEMA14
Step Angle: 1.8 degree
Voltage: 3.2VDC
Current: 0.75A/phase
Resistance: 4.3Ohm/phase
Inductance: 4mH/phase
Holding torque: 70Kg-cm
Rotor inertia: 10g-cm2
Detent torque: 6kg-cm
Number of wire leads: 4
Weight: 0.13KG
Length: 26mm
Front shaft diameter: 5mm
Front shaft length: 24mm round shaft
This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!
Company Contact:
- Posted By: JIANGSU WANTAI MOTOR CO.,LTD
- Phone: 13815007798
- Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China
- Email:
- Website: https://www.wantmotor.com
Published date: March 26, 2023
- Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.
Always adhere to the people-oriented, mature production technology, complete testing equipment.
