    • Wantai Stepper Motor 28bygh303 - China

    price: 20.00 Dollar US$

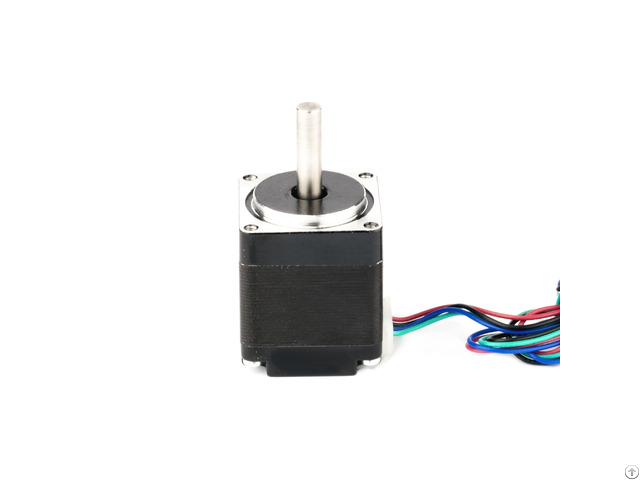

    Wantai Stepper Motor 28bygh303

    Products Photos Catalog Wantai Stepper Motor Photos Catalog

    标题：Wantai Stepper Motor 28BYGH303, 95Kg.

    cm, 0.95A, cnc engraver

    Part No: 28BYGH303Single Shaft

    Frame Size: NEMA11

    Step Angle: 1.8 degree

    Voltage: 3.4VDC

    Current: 0.95A/phase

    Resistance: 3.4Ohm/phase

    Inductance: 1.2mH/phase

    Holding torque: 95Kg-cm

    Rotor inertia: 12g-cm2

    Detent torque: 6kg-cm

    Number of wire leads: 4

    Weight: 0.14KG

    Length: 45mm

    Front shaft diameter: 5mm

    Front shaft length: 20mm round shaft

    This model is for Single shaft, with 5mm motor shaft, 20mm front shaft length, round shaft! More Order Quantites, more discount!


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: March 23, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
