    • Stepper Motor 39byg301 - China

    price: 20.00 Dollar US$

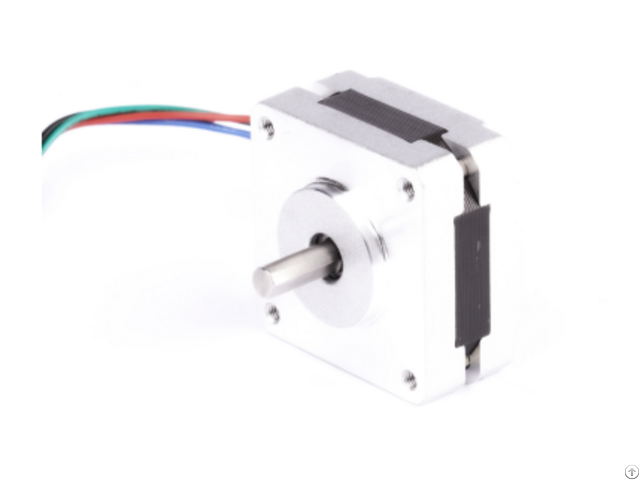

    Stepper Motor 39byg301

    Products Photos Catalog Stepper Motor 39byg301 Photos Catalog

    Wantai Stepper Motor 39BYG301, 100Kg.

    cm, 0.5A, cnc engraver, medical equipment

    Part No: 39BYG301Single Shaft

    Frame Size: NEMA16

    Step Angle: 1.8 degree

    Voltage: 4.5VDC

    Current: 0.5A/phase

    Resistance: 9Ohm/phase

    Inductance: 3.5mH/phase

    Holding torque: 100Kg-cm

    Rotor inertia: 18g-cm2

    Detent torque: 10kg-cm

    Number of wire leads: 6

    Weight: 0.16KG

    Length: 34mm

    Front shaft diameter: 5mm

    Front shaft length: 24mm round shaft

    This model is for Single shaft, with 5mm motor shaft, 24mm front shaft length, round shaft! More Order Quantites, more discount!


    Company Contact:


    • Phone: 13815007798

    • Address: No.18, Bo Yang Road, Changzhou , Jiangsu , China

    • Email: Email


    Published date: April 9, 2023

    • Business Description: he company is a high-tech enterprise specializing in the design and production of hybrid stepper motor, brushless DC motor and matching motor drivers.

      Always adhere to the people-oriented, mature production technology, complete testing equipment.
