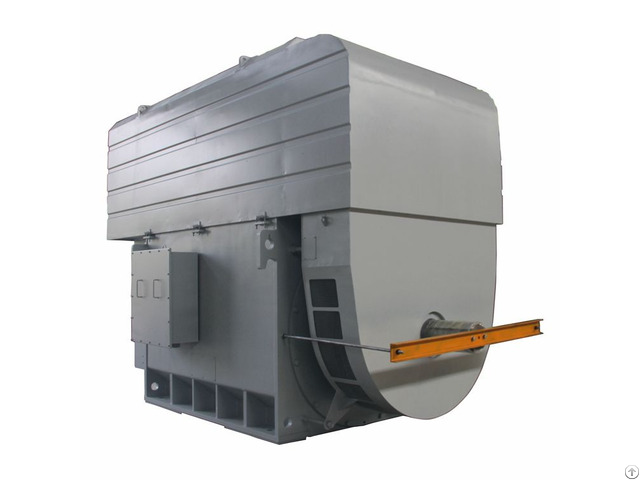

High Voltage Slip Ring Induction Motor

The large-scale High Voltage Slip Ring Induction Motor is a large-scale mechanical equipment motor product developed and manufactured by our company on the basis of years of research and development and manufacture of high-voltage three-phase asynchronous motor.

This type of motor adopts box type structure.

The frame is made of steel plate welded box structure, which is light in weight and good in rigidity.

It can be installed with protective cover or cover on both sides of the frame.

After removing the protective cover or cover, the motor can be observed and touched.

Internal, easy to maintain and repair the motor.

The stator of the large High Voltage Slip Ring Induction Motor adopts a slide-in external press-fit structure.

The stator winding is made of Class F insulation material, and the ends are reliably fixed and bundled.

During the manufacturing process, multiple turns of the pulse voltage test and grounding are performed.

Withstand voltage test and vacuum pressure impregnation solventless paint process (VPI) treatment, therefore, the motor has excellent insulation performance, good mechanical strength and strong moisture resistance.

The wound rotor is treated with Class F insulation and vacuum pressure impregnation solventless paint process (VPI).

The rotor weld head and the wiring are all insulated.

The slip ring and stator winding of the motor are located in two isolated spaces to prevent toner from entering the winding.

The bearing has two types of rolling bearing and sliding bearing.

According to the motor power and speed, the basic form of protection is IP54 - If the motor has a high degree of protection, the protection level of the bearing will also increase.

High Voltage Motor Supplier: ZCL Electric Motor Technology Co., Ltd.

The main High Voltage Slip Ring Induction Motor main outlet box is IP54 protection grade, generally installed on the right side of the motor (facing the motor shaft extension end), or can be installed on the left side of the motor according to the order.

The main outlet box has a separate external Ground terminal.

Center height range: H355 ~ 1000mm

Power range: 200KW-800kW ~ 12000kW

Number of poles: 4/6/8/10/12

Rated voltage: 6000V/6600V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).
