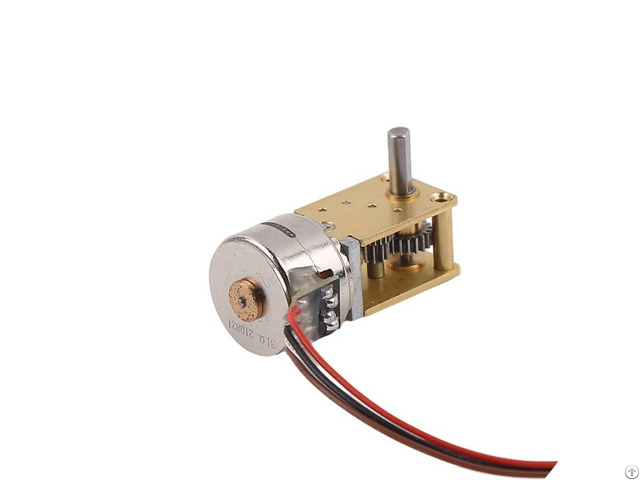

15mm 2 Phase 4 Wire Geared Stepper Motor With Gear Box Rohs Certified - China

Product Details:

Place of Origin: China

Brand Name: V-motor

Certification: RoHS

Model Number: SM15-816G

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc

Price: US$2.85~7

Packaging Details: Samples are packaged in small cartons and pearl cotton, and bulk products are in blister boxes and cartons, and when necessary, use pallets (when the quantity is large).

Delivery Time: 15 days

Payment Terms: T/T, L/C

Supply Ability: 100000/month Detailed Product Description

Type: Permanent Magnet Geared Stepper Motor Phase: 2-2 Phase

Current / Phase: 0.4 A Step Angle: 18/i Degrees(i Gear Ratio)

Rated Voltage: 5V Or As Request Gear Ratio: 2: 1~1000: 1

Resistance: 31 Ω ± 7% Weight: 18 G

Motor Length: 22.8mm

High Light: Geared Stepper Motor RoHS, 2 Phase 4 Wire Geared Stepper Motor, 15mm Stepper Motor With Gear Box 2 phase 4 wire dc gear motor 15mm micro stepper motor with 12mm gearbox for precise instrument The basic step angle of the SM15-816G geared motor is 18 degrees, that is, 20 steps per revolution.

With the deceleration effect of the gearbox, the final angular resolution of the motor can reach 0.018~0.9 degrees, which can be used in various equipments that require precise control.

Customer selectable gear ratios are: 1: 2 1: 5 1: 10 1: 15 1: 20 1: 30 1: 36 1: 50 1: 63 1: 67 1: 89 1: 100 1: 110 1: 150 1 : 172 1: 210 1: 250 1: 275 1: 298 1: 380 1: 420 1: 500 1: 600 ​​1: 1000, different speed ratios will produce different final torque and rotational speed, customers can according to their actual needs to choose.

In addition, special speed ratios can be customized, if you are interested in our products, please feel free to contact me.

When selecting a motor, please consider the speed and torque comprehensively while meeting the requirements.

This series of gear boxes adopts the most advanced related parts processing equipment, with high precision, high efficiency and low noise, and adopts reasonable and reliable technology, so that the products have better reliability.

The power input part and standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on.

The output of the motor part can adopt various output structures such as round shaft, D shaft, lead screw, gear, pulley and so on! Can be customized according to customer needs.

15mm 2 Phase 4 Wire Geared Stepper Motor With Gear Box RoHS Certified 0 SM15mmgearbox stepper main parameters: PRODUCT NAME 15 mm geared stepper motor

MODEL SM15-816G

Drive Vltage 3.3V~5V

Step Angle 18°

PHSA 2

RESISTENCE 31Ω±7% (optional 20 15 10 ohm)

OPERATING TEMPERATURE RANGE -0~+55 ℃

GEAR RATIO 21~1030

OEM & ODM SERVICE AVAILABLE

EFFICIENCY 10~20%

SPEED RANGE Motor(0~3000RPM) Out shaft(0~150rpm)

WEIGHT 18g
