One Of The Best Electronic Speed Controllers For Rc Cars And Trucks - China

Advantages of XC Electronic Speed Controllers (ESCs) for RC Hobbies E8 electronic speed controller features: 1 - Current: Continuous current 160A, peak 320A 2 - Output: 3-6s Li-Po 3 - Motor: Sensored or sensorless brushless motor, 240, 000RPM 4 - BEC: 6.0V, 7.4V, 8.4V, continuous current 6A, peak 15A 5 - Bluetooth: Parameter programming, firmware upgrade 6 - Acceleration: 12 levels of acceleration, quick start like super car 7 - Compatible with most of motors for RC hobbies.

Dimension: 59.8*48.2*35.9mm The best electronic speed controllers (ESCs) not only provide high-performance but also excellent operability and controllability.

With 13 years of experience in this specialized field, Xiongcai ESCs perfectly achieve this.

We have launched a series of electronic speed controllers (ESC) for RC hobbies, including RC cars, RC trucks, RC boats, RC planes and so on.

with high-performance, operability and controllability.

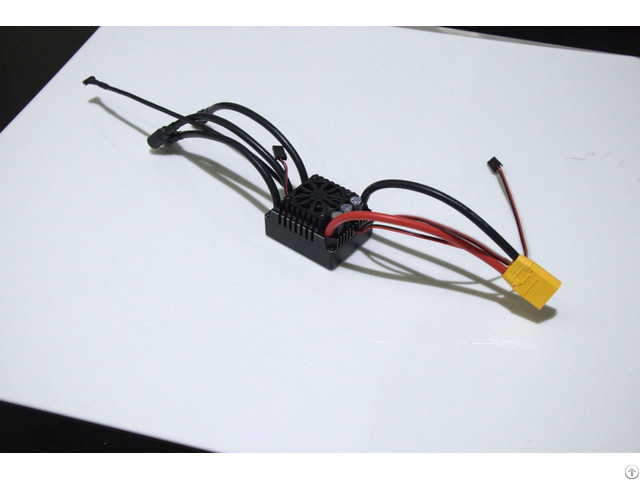

For example, XC202 E8 electronic speed controller (ESC).

E8 electronic speed controller (ESC) is combined powerful hardware and software advancements that will redefine limits of RC Cars and Trucks.

It is housed in rugged aluminum case integrating a 40mm blade fan to enhance performance and promote heat transfer dramatically.

Advanced software will minimize the time the components spend generating heat, taking thermal performance to next level.

E8 electronic speed controller (ESC) can handle 6S LiPo batteries, so it can deal with anything motor pours out.

With 160A sustainable current, you can feel the ultimate driving experience and handling experience like super cars, you are able to do any stunts and show your skill.

Built-in high power DCDC conversion circuit improves BEC loading capacity, keeping servo working at its best.

Besides performance, E8 ESC provides excellent operability.

You will see that many manufacturers designed a programming box for setting parameters.

Xiongcai adopted another approach-developing a mobile application instead which connected via bluetooth.

You can set each item on the app including running mode, acceleration, brake force, drag brake, turbo timing and more, simple, clear and convenient.

We only focus on design and manufacture of electronic speed controllers, and we make them more powerful and easy to operate.

To be honest, isn’t it more convenient to operate it on mobile phone than on a two-finger wide LCD screen? E8 electronic speed controller (ESC) for RC hobbies is designed with characteristics: 1 - Quick response for start-up and linearity features.

2 - Compatible with most of motors for RC hobby products.

3 - Three running modes for different applications or driving skills (“Forward with brake”, “Forward/Reverse with brake” and “Forward/Reverse” mode).

4 - Brake force adjustable.

5 - Drag brake force adjustable, especially for beginner or training.

6 - 12 levels of acceleration evokes your passion, gets you excited.

Something you can’t feel in reality, but you can feel it here with E8 ESC.

7 - Multiple protection measures: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

Especially active freewheeling for microsecond response reducing heat and wave-by-wave current limiting for motor and drivetrain protection.

8 - Turbo timing.

It will start at full throttle to additionally increase motor RPM.

9 - Quick setting.

All parameters can be set on mobile app, simple and clear.

10 - The firmware upgrade.

You don’t need to find a wire to connect another box or computer, what you need to do is click the “firmware” button and upgrade it online, simple and convenient.

11 - waterproof design.

Epoxy potted for all weather conditions.

Just drive.

At present, we are not as famous as great brands such as Castle Creation, Hobbywing, Horizon Hobby, HPI Racing, Losi, Team Corally etc., but we are manufacturing superb quality products, adapting your products and making your product more competitive on both performance and price.

Xiongcai XC202 E8 electronic speed controller is designed for ultimate handling experience, you just enjoy the driving, and we will take care of the rest.

Contact us and have a try for ultimate handling experience.
