Five Advantages Of Xc Speed Controller For Rc Cars - China

Current: Continuous current 140A, peak 320A 2 - Supply: 2-4s Li-Po

3 - Motor: Sensored or sensorless brushless motor

4 - Speed: <240, 000RPM

5 - BEC: inuous current 5A, peak 10A

6 - Mobile App & Bluetooth: Parameter setting, firmware upgrade

7 - Dimension: 52.8*39.8*35.3mm Focusing on electronic speed controller (ESC) design and manufacture, Xiongcai is a company that pursue the excellence relentlessly.

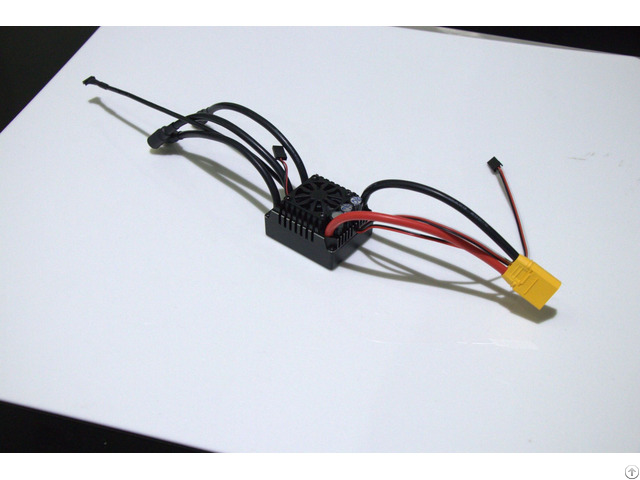

The company has developed a series of ESCs for RC hobby products, E8 is one of them designed for 1: 10th RC cars and trucks.

Power With 140A cont.

current, 4s Li-Po power system, the E10 electronic speed controller can deal with anything the motor pours out.

Built-in DCDC conversion circuit provides potent capacity for BEC.

Powerful BEC output is adjustable 6v, 7.4v, and 5A continuous current, 10A peak.

This product is packed with an integration of excellent hardware, original creative software and sensorless mode for high performance power system.

Tough Design and Thermal Performance Thermal management is important to a powerful electronic device.

With integration of forged Al heatsink, case and a 40mm fin fan, E8 electronic speed controller allows airflow maximum throughout entire component, taking thermal performance to next level for cooler ESC, longer runtime and high-performance.

The fan will be turned on or off by ESC according to internal temperature of system.

Bluetooth Communication

A mobile application is designed meticulously for DIY configuration.

Most of parameters related to performance you can set according to your skill level, including running mode, acceleration, braking force, turbo timing, and so on.

Something you can’t experience in reality, but you can feel them with your RC cars or trucks instead.

For example, we set 12 levels of acceleration, the quick start and launch control will ignite your passion and get you excited.

Protection

We have power, also we have protection measure for safety.

A multi-protection measures include low voltage, throttle loss, abnormal braking, over-temperature, short circuit, and more.

Especially, we designed two original creative technological application: active freewheeling and wave-by-wave current limiting.

The active freewheeling identification technology achieves microsecond track and response, reducing MOS generating heat dramatically.

The wave-by-wave current limiting will control the peak of each wave of current to protect motor and drivetrain, prolonging service life of power system.

E10 electronic speed controller is ultra-powerful, but easy to handle, what you need to do is enjoying the drive, we take care of the rest.

There are 6 ESCs in this product family, from 140A to 400A to meet enthusiasts’ diverse demands.

Xiongcai electronic speed controllers will supplement your portfolio and make your RC cars more competitive in power and price.

Company Contact:

• Posted By: XC Motor Control Technology

• Phone: +8675522183636

• Address: Quanzhi S&T Innovation Part, shajing, Baoan,, Shenzhen , China

• Email:

• Website: https://en.xc-bldc.com/

• Business Description: Our motor controllers, electronic speed controllers (ESC) have been widely used in automtoive fuel pump & water pump, drones, orthopedic power devices and RC hobbies since 2011.

  For automotive accessories, our controllers are mainly used in condensing fans and evaporating fans on passenger cars, electric water pumps on cars, cooling fans for water tanks on passenger cars, and electric fuel pumps on commercial vehicle, etc.

  For drones, our ESC is mainly used in high-power products such as fire-fighting drones, cargo-carrying drones, manned drones, and agricultural drones;

  For medical apparatus, our BLDC motor controllers are mainly used in bone drills,medical draw saws, medical root canal and tooth grinder.

  XC BLDC motor controllers have been introducing by top clients in various industries, NISSAN, XPeng Aero, FAW group, Cummins, EHANG, AUTOFLIGHT, CLING, JENSEN INSTRUMENTS and more.

  XC Technology is ready to put your devices in extreme.
