Bmr Hydraulic Motor - China

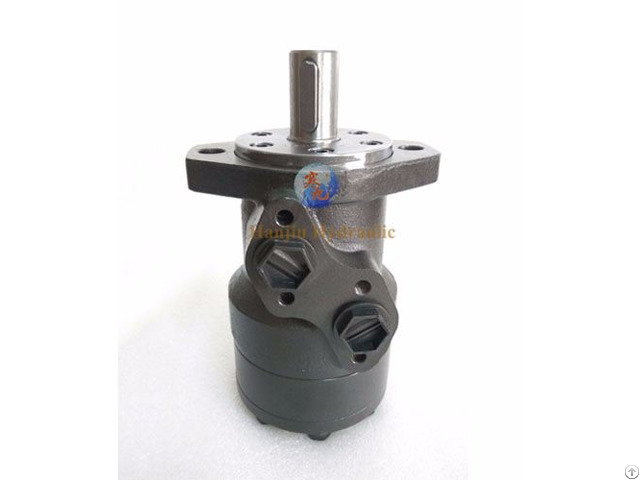

Hydraulic Orbit Motor BMR BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.

Characteristic Features: *Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

*Special design in the driver-linker and prolong operating life *Special design for distribution system can meet the requirement of low noise of unit.

*Compact volume and easy installation.

Order Code: Code

BMR Displacement

36

50

80

100

125

160

200

250

315

375 Flange

2

2-Ø13.5 Rhomb-flange, pilot Ø82.5×8

4

4-Ø13.5 Rhomb-flange, pilot Ø82.5×8

H4

4-3/8-16 Square-flange, pilot Ø44.4×2.8

H5

4-M10 Square-flange, pilot Ø44.4×2.8 Output Shaft

A

Shaft Ø25, parallel Key 8x7x32

B

Shaft Ø32, parallel Key 10x8x45

C

Shaft Ø25.4, parallel Key 6.35x6.35x31.75

E

Shaft Ø25.4, splined tooth SAE 6B

R

Short shaft Ø25.4, parallel key 6.35x6.35x31.75

F

Shaft Ø31.75, splined tooth 14-DP12/24

FD

Long shaft Ø31.75, splined tooth 14-DP12/24

G

Shaft Ø31.75, parallel Key 7.96x7.96x31.75

T

Cone-Shaft Ø28.56, parallel Key B5x5x14 Port and Drain Port

D

G1/2 Manifold Mount 4-M8, G1/4

M

M22×1.5 Manifold Mount 4-M8, M14×1.5

S

7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF

P

1/2-14 NPTF Manifold 4-5/16-18UNC, 7/16-20UNF

R

PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4 Rotation Direction

Omit

Standard

R

Opposite Paint

00

No paint

Omit

Blue

B

Black

S

Silver grey Unusually Function

Omit

Standard

N

Big radial force

O

No case drain

F

Free Running

LS

Low Speed Hydraulic orbit motor applications: Brush cutters Mower Haveresting equipment Forestry equipment Turf equipment
