Strong 8mm Electric Stepper Motors - China
price: 3.00 Dollar US$
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: VIC-TECH
Certification: RoHS
Model Number: VSM08102
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: $3~$7/Unit
Packaging Details: Selling Units: Single item plastic box inner, outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Lead Time : 30 Days After Deposit
Delivery Time: 15-30 work days
Payment Terms: T/T, Western Union,
Supply Ability: 1000000 Units/year

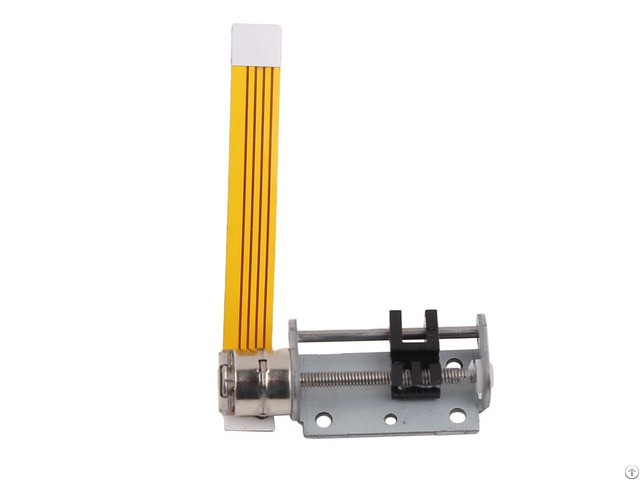

This is a special precision stepper motor with a bracket and guide( when motor ratate, the guide will moving), the moving speed can controlling by the pulse frequency, the moving distance can controlling by the pulse number.
for this typical motor, when motor driving 2-2 phase, 1 pulse make the guide moce 0.02 mm.
Electric Stepper Motors Specifications
Product Name 8 mm micro stepper motor
Model VSM08102
Rated Voltage 3.3V
Current Per Phase 150 mA /phase
Coil Resistance 20 Ω±7%
No.
Of phase 2 Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 1.5 gf.
cm At 500 pps
Pull-Out Torque 2.0 gf.
cm At 500 pps
Max.
Response Frequency 800 pps, Max.
Starting Frequency 2000 pps, Insulation Class Class E for Coils
Insulation Strength 100 V AC for One Second
Insulation Resistance 1.0 MΩ (DC 100 V)
Operating Temperature Range -10~+60 ℃
Weight 5.5 g(Ref.
)
OEM & ODM SERVICE AVAILABLE
Electric Stepper Motors Technical Features
VSM08102 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
Electric Stepper Motors Typical Applications
Intelligent Security Products
Camera Lenses
Door Locks
Wearable device
Company Contact:
- Phone: +8617715451401
- Address: No.28,Shunyuan Road,Xinbei Dist, Changzhou,Jiangsu,China(M ainland), In business, China
- Email:
Published date: February 20, 2023
- Business Description: Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production.
Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011 - Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
